Agilent Technologies 6632B User Manual

B - Verification and Calibration
54
DC
Current
monitor
Voltmeter
Load
resistor
DC
Ammeter
-
+
Load
resistor
DC
Ammeter
-
+
+
-
External
DC supply
A.
B.
C.
+S
+
-
-S
+ 240 VDC MAX TO
-
+S
+ - -S
+ 240 VDC MAX TO
-
+S
+
-
-S
+ 240 VDC MAX TO
-
-
+
Current
monitor
DC
Voltmeter
-
+
+
-
External
DC supply
D.
+S
+
-
-S
+ 240 VDC MAX TO
-
Load Resistor
400 6631B
1.1K 6632B
& 66332A
2.5 K 6633B
5 K 6634B

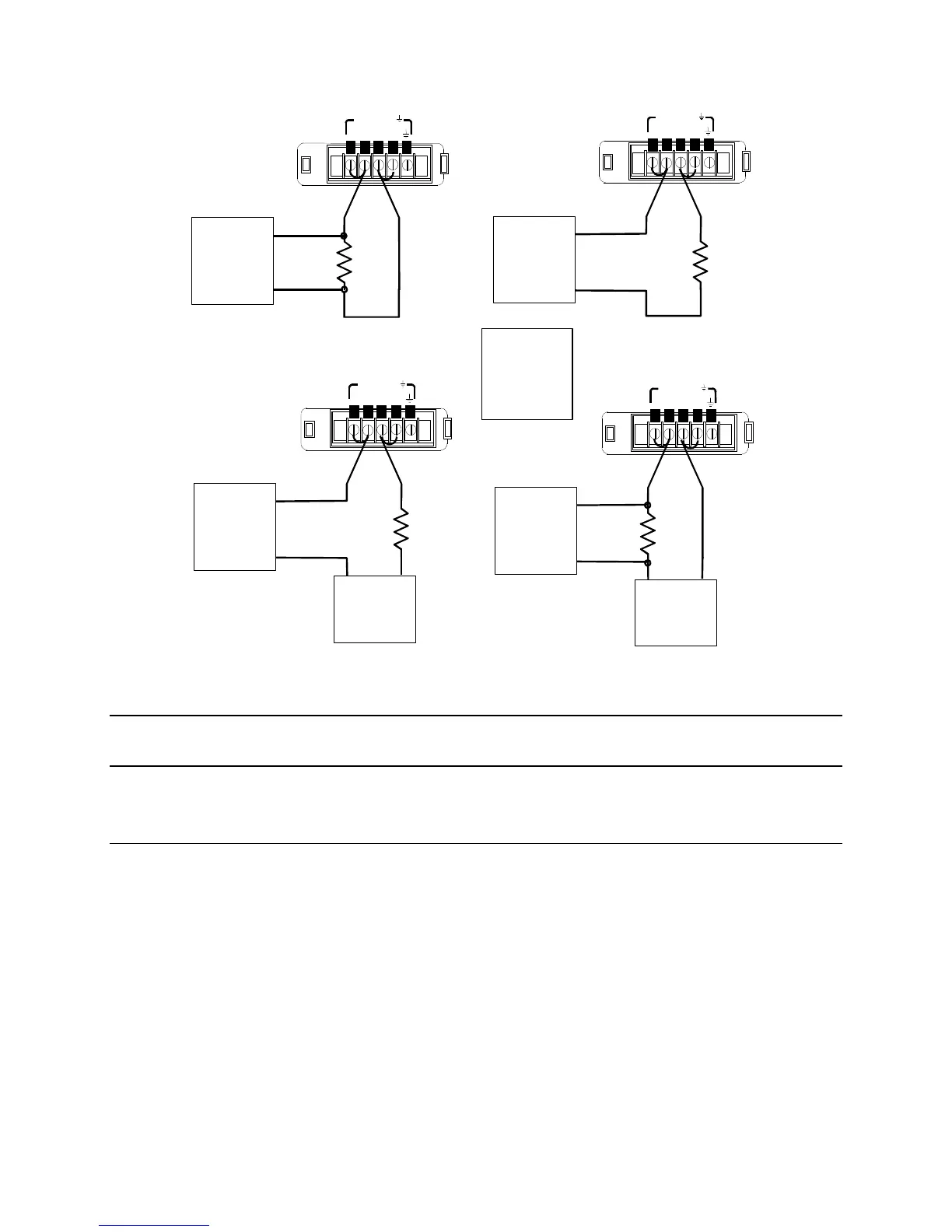

Figure B-1. Verification & Calibration Test Setup
Performing the Verification Tests
NOTE: The verification procedure can only be performed using the SCPI language commands.
Use either the front panel Address key to access the LANG command, or use the
SYSTem:LANGuage command to change the programming language to SCPI.
The following procedures assume you understand how to operate the dc source from the front panel as
explained in chapter 5.
When performing the verification tests from an GPIB controller, you may have to consider the relatively
slow settling times and slew rates of the dc source as compared to computer and system voltmeters.
Suitable WAIT statements can be inserted into the test program to give the dc source time to respond to
the test commands.
Perform the following tests for operation verification in the order indicated.
1. Turn-On Checkout
2. Voltage Programming and Measurement Accuracy
3. Current Programming and Measurement Accuracy
