Agilent Technologies 7683 Service Manual

Replacement Procedures
Replacing the G2614A Tray
MAR 2000 17
Replacing the G2614A Tray
1. Unplug the tray cable from the GC.
2. Remove the three injection port cover Torx screws shown in Figure 3 and
remove the old tray.

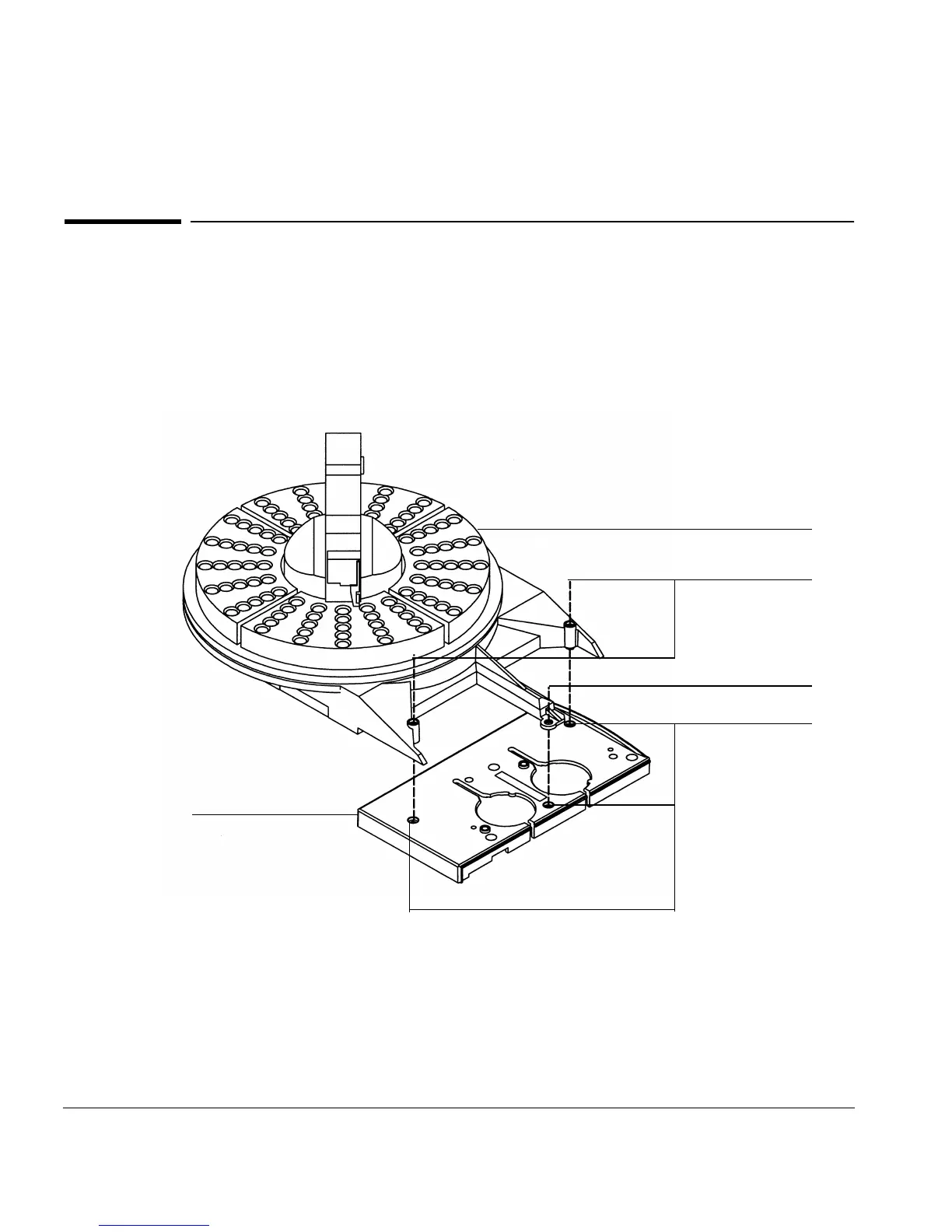

Figure 3 Installing the tray
Injection port cover
screws
Tray
Captive screw
(install first)
Tray mounting
Remove screws from
cover
