Agilent Technologies 7683 Service Manual

2 MAR 2000
Chapter 1
System Overview
Modules
The 7683 Automatic Liquid Sampler system, shown in Figure 1, can include:
• One G2612A ALS interface board (required on 6890 GC, not used on 6850 GC)
• One or two G2613A injector module(s)
• One G2614A 100 vial tray (optional, 6890 GC only)
• One G1926A Bar Code Reader (optional, 6890 GC only)–requires INET
integrator or ChemStation

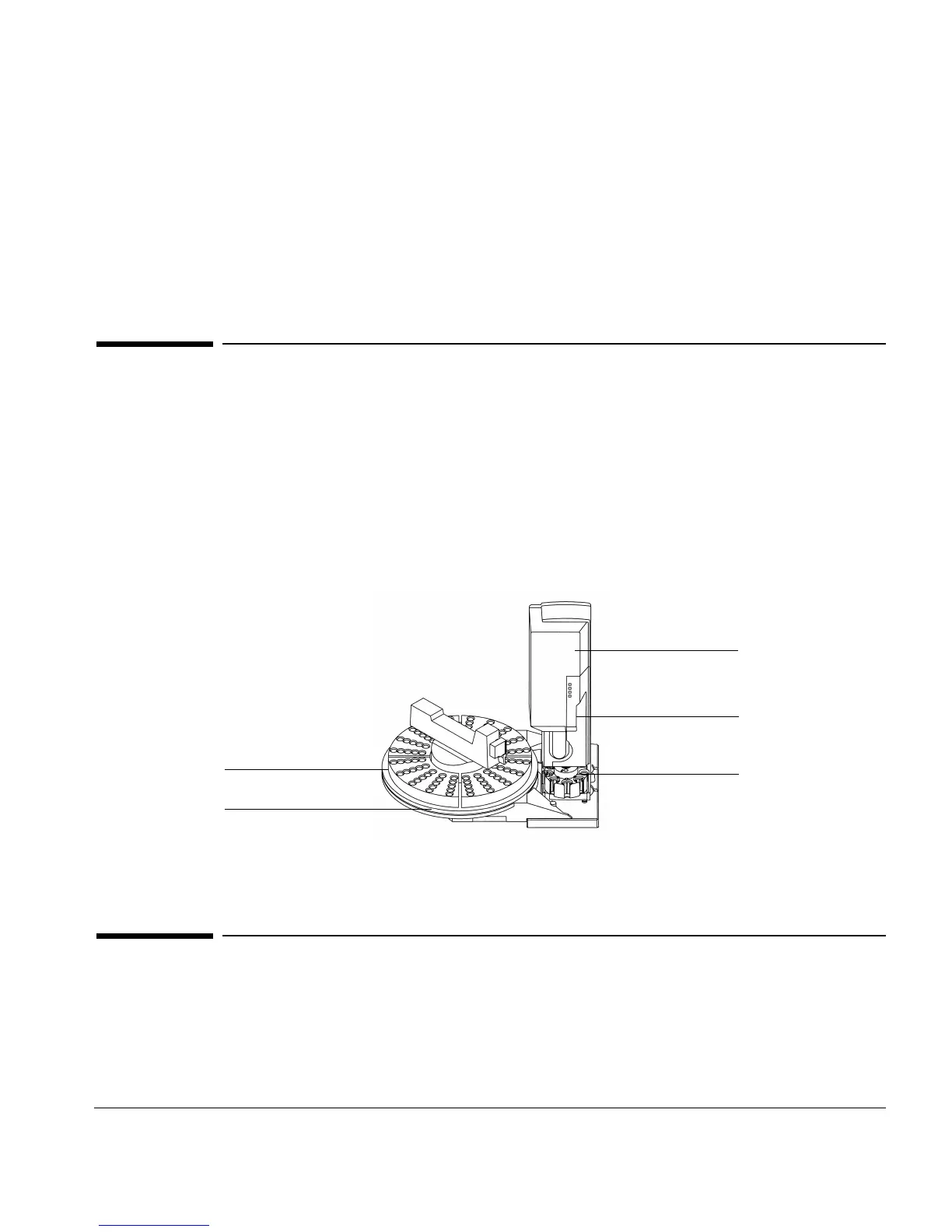

Figure 1 The 7683 Automatic Liquid Sampler system
Compatibility
A 6890 GC without the ALS interface board can use only the 7673 ALS.
A 6890 GC with the ALS interface board can use only the 7683 ALS.
The 6850 GC uses only the 7683 ALS.
Sample tray quadrant
Open injector door here
Turret
G2613A Injector
G2614A Tray
