Agilent Technologies 7697A Advanced Operation Guide

22 Advanced Operation
2 How the 7697A Headspace Sampler Works
Types of HS Extractions and Injections
The 7697A HS can extract and inject sample once or
multiple times per vial. The HS provides a selection for
extraction type as an advanced function. Figure 8 shows the
basic flow paths during an injection cycle, where the sample
loop is flushed into the GC.

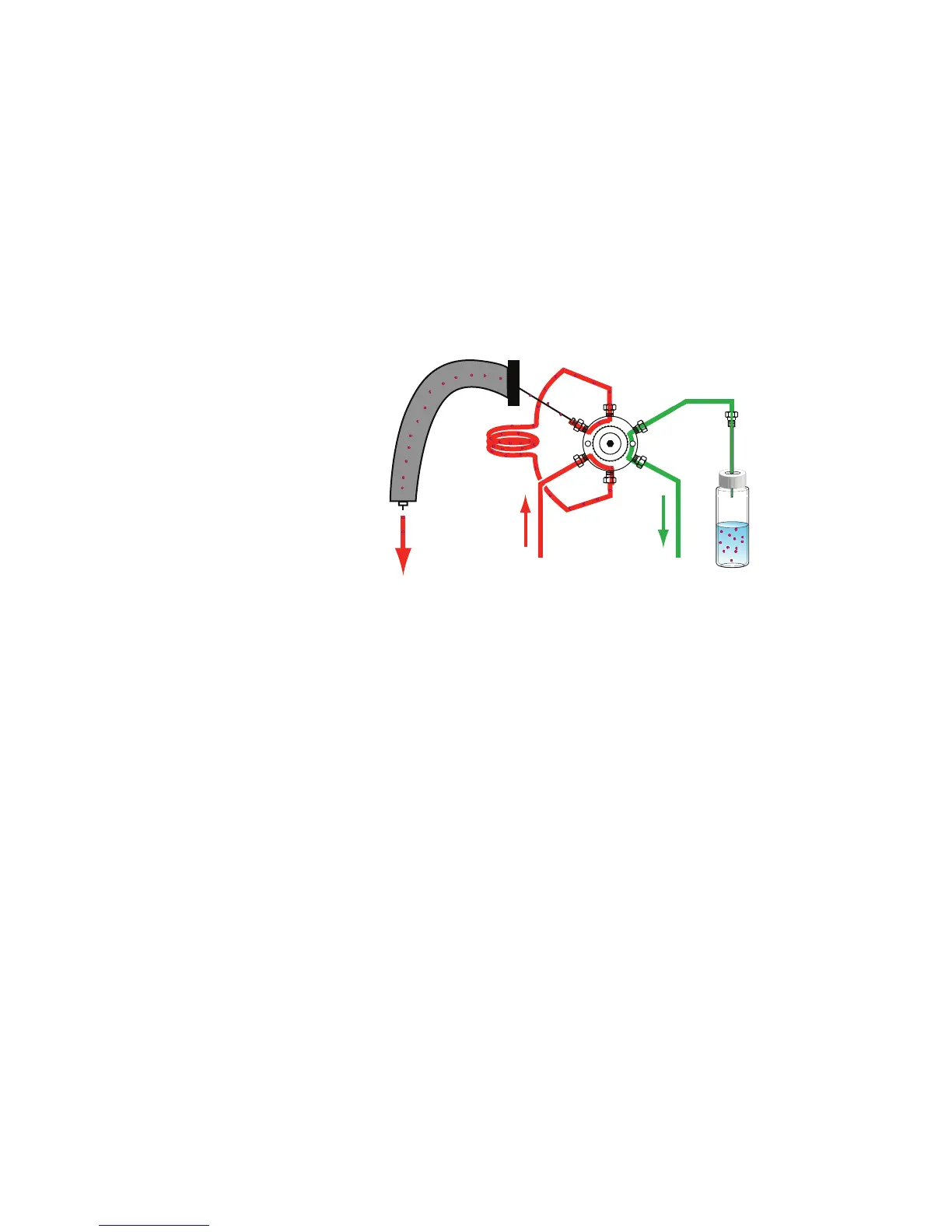

Figure 8 HS injection cycle
Refer to Figure 9 for a diagram of the flow paths within the
HS sampler (using GC carrier).
1
2
3
4
5
6
Sample probe
Carrier gas Vent
Transfer
line
