Purge time and flow
Between sample vials, the HS will purge the sample probe,
sample loop, and vent. See Figure 11. The default purge flow
is 100 mL/min for 0.5 minutes.

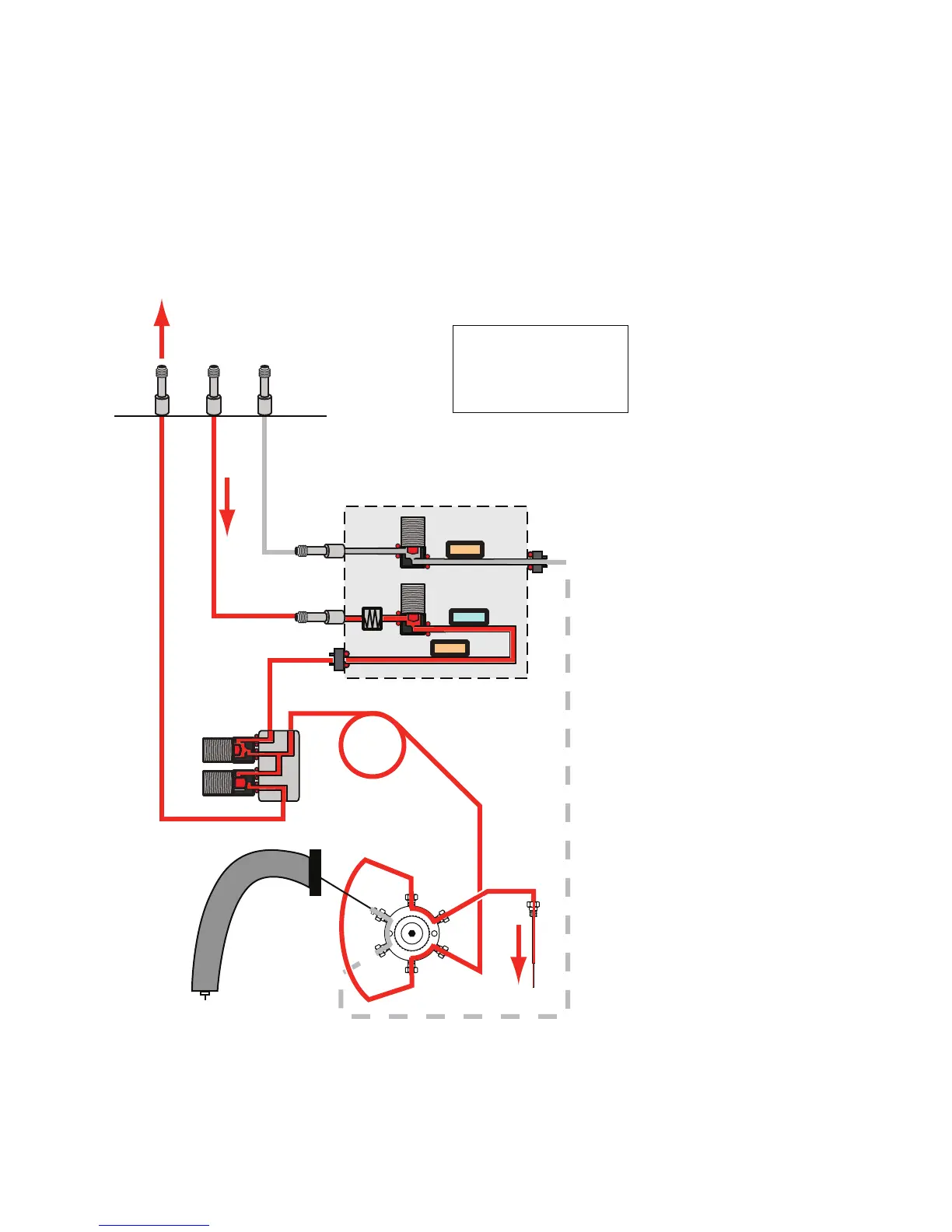

Figure 11 Flow paths during purge time
SV1
PV2
Flow control module
1
2
3
4
5
6
6 port valve
Transfer
line
Vent
Carrier gas
Vial pressurization
gas
PS - Pressure sensor
FS - Flow sensor
SV - Switching valve
PV - Proportional valve
PV1
PS
FS
SV2
PS
Sample loop
