7820A GC Installation Guide
7820A GC Installation Manual 19
3 Connect the sampler control cable. See “Cables and
Back Panel Connectors" on page 32 for more
information about making connections to the GC.
4 If using a G4513A injector, prepare it for use. (See the
7693A Installation, Operation, and Maintenance
manual for instructions provided on the sampler.)
a Install the standalone (16 sample) turret
(G4513-40532) into the injector.
b Install the 10 uL syringe (5181-3354).

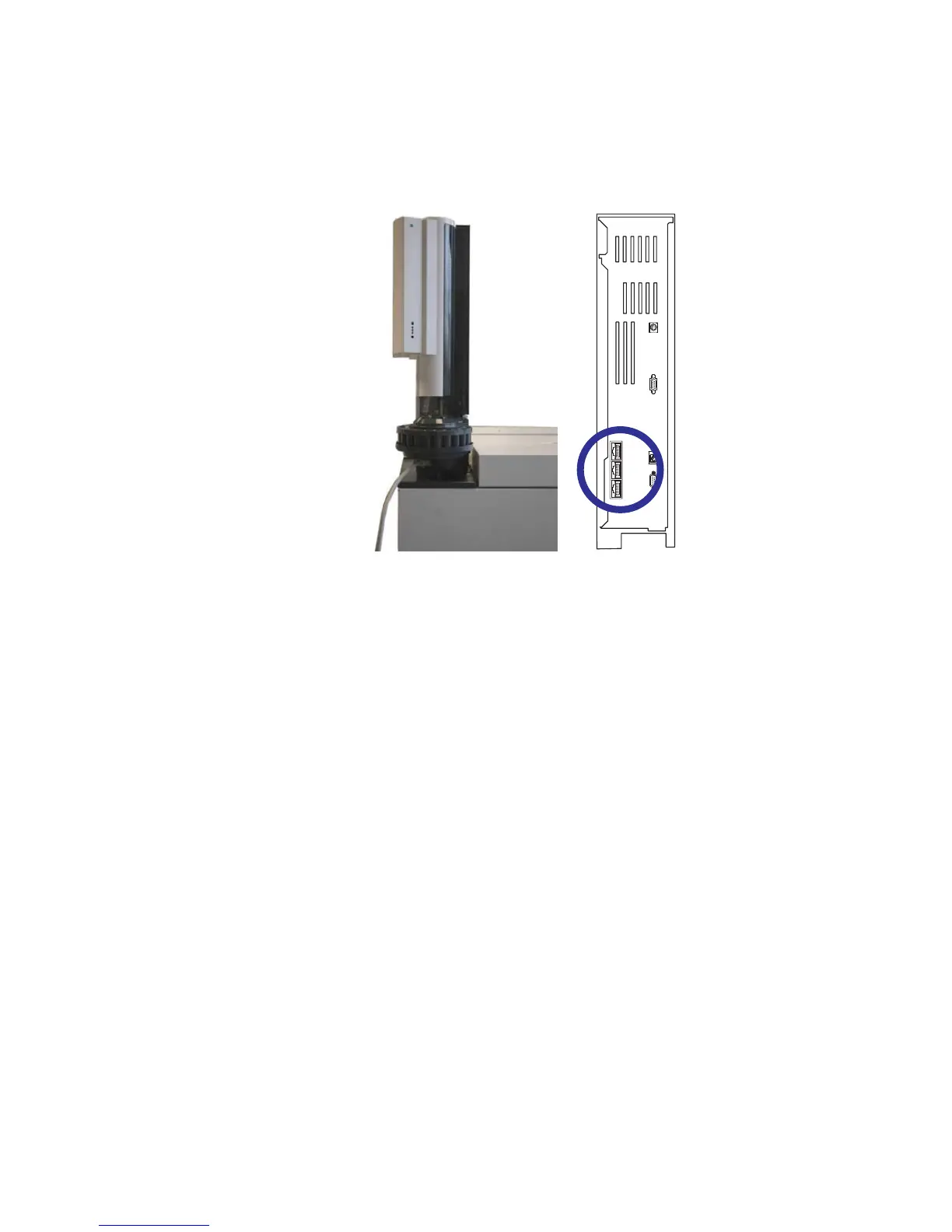

Figure 10 Sampler installation and cable connection
TEST PORT LAN
BACK
FRONT
TRAY
ALS PORT
