Agilent Technologies 83650B User Manual

4
ALC
5
4
ALC
5

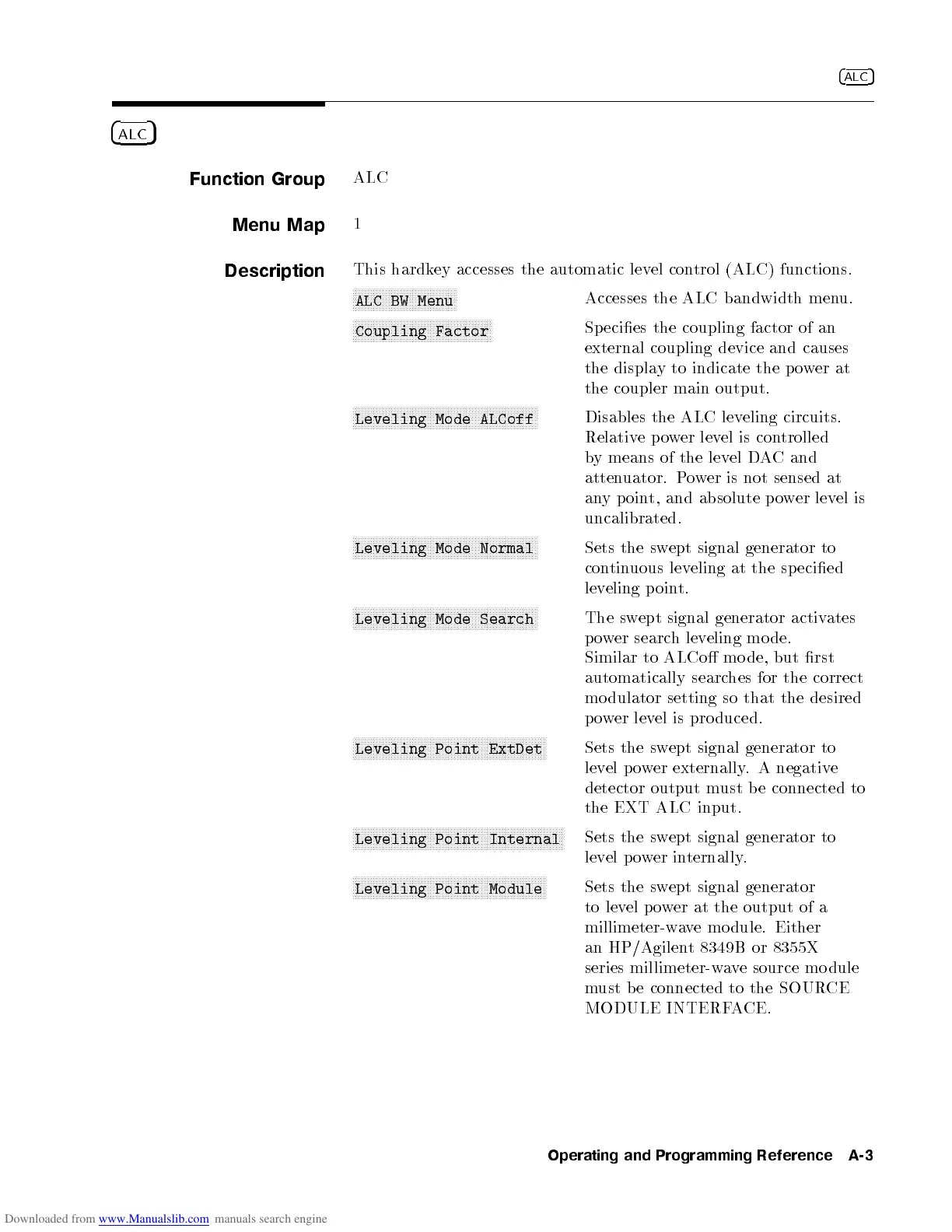

Function Group
ALC
Menu Map
1
Description
This hardkey accesses the automatic level control (ALC) functions.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
ALC BW Menu
Accesses the ALC bandwidth menu.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Coupling Factor
Species the coupling factor of an
external coupling device and causes
the display to indicate the p ower at
the coupler main output.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Mode ALCoff
Disables the ALC leveling circuits.
Relativepower level is controlled
by means of the level DAC and
attenuator. Power is not sensed at
any point, and absolute power level is
uncalibrated.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Mode Normal Sets the swept signal generator to
continuous leveling at the specied
leveling p oint.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Mode Search
The swept signal generator activates
power search leveling mo de.
Similar to ALCo mo de, but rst
automatically searches for the correct
mo dulator setting so that the desired
power level is pro duced.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Point ExtDet
Sets the swept signal generator to
level power externally. A negative
detector output must be connected to
the EXT ALC input.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Point Internal
Sets the swept signal generator to
level power internally.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Leveling Point Module
Sets the swept signal generator
to level p ower at the output of a
millimeter-wave mo dule. Either
an HP/Agilent 8349B or 8355X
series millimeter-wave source mo dule
must be connected to the SOURCE
MODULE INTERFACE.
Operating and Programming Reference A-3
