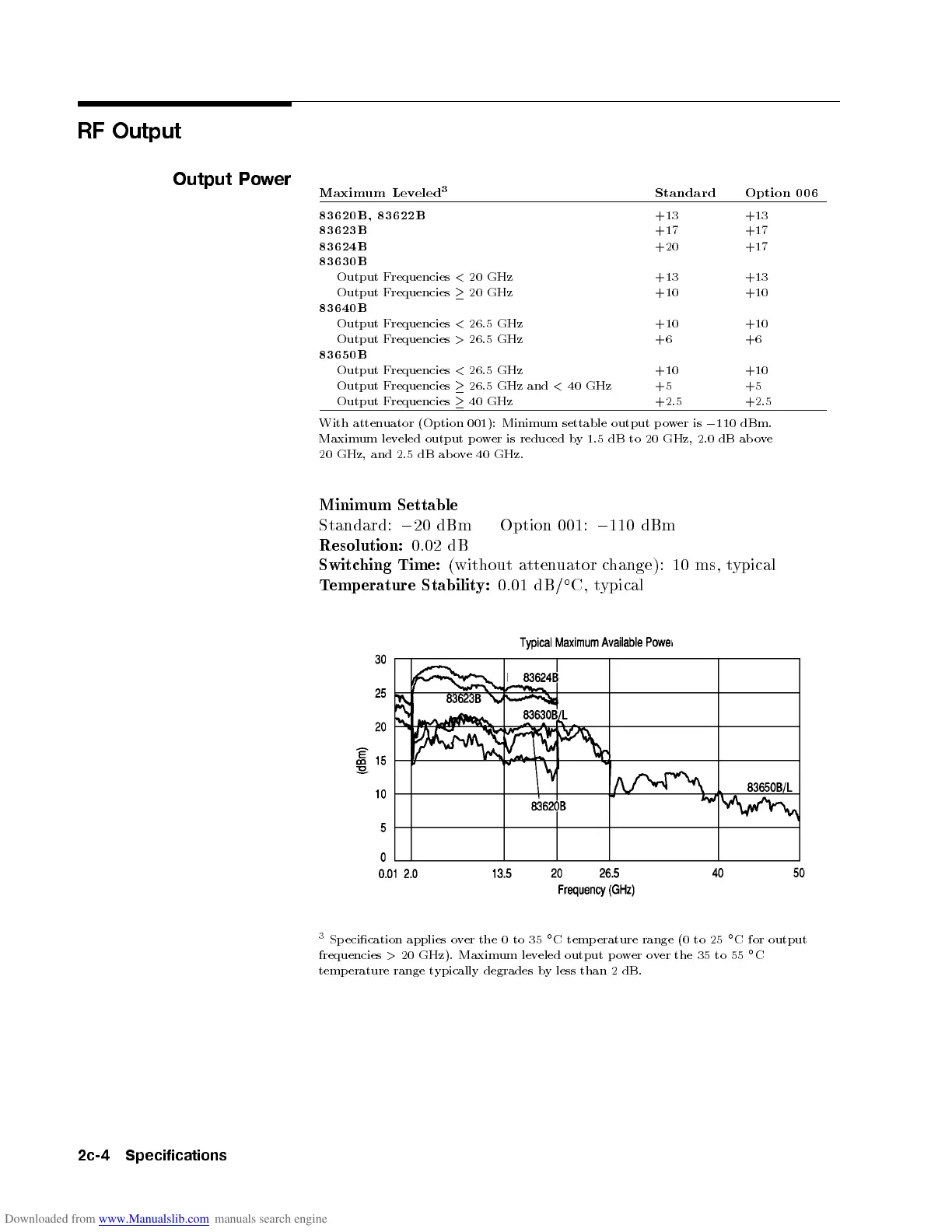

RF Output
Output Power
Maximum Leveled
3
Standard Option 006
83620B, 83622B +13 +13
83623B +17 +17
83624B +20 +17
83630B
Output Frequencies < 20 GHz +13 +13
Output Frequencies  20 GHz +10 +10
83640B
Output Frequencies < 26.5 GHz +10 +10
Output Frequencies > 26.5 GHz +6 +6
83650B
Output Frequencies < 26.5 GHz +10 +10
Output Frequencies  26.5 GHz and < 40 GHz +5 +5
Output Frequencies  40 GHz +2.5 +2.5
With attenuator (Option 001): Minimum settable output p ower is 0 110 dBm.
Maximum leveled output p ower is reduced by 1.5 dB to 20 GHz, 2.0 dB ab ove
20 GHz, and 2.5 dB ab ove 40 GHz.
Minimum Settable
Standard: 0 20 dBm Option 001: 0 110 dBm
Resolution: 0.02 dB
Switching Time: (without attenuator change): 10 ms, typical
Temperature Stability: 0.01 dB/

C, typical
3
Sp ecication applies over the 0 to 35

C temp erature range (0 to 25

C for output
frequencies > 20 GHz). Maximum leveled output p ower over the 35 to 55

C
temp erature range typically degrades by less than 2 dB.
