Agilent Technologies 83650B User Manual

4
STOP
5
See Also
4
CENTER
5 , 4
CW
5 , FREQUENCY 4
MENU
5 , 4
SPAN
5 , 4
START
5
\CW Operation and Start/Stop Frequency Sweep" in Chapter 1
\Programming Typical Measurements" in Chapter 1
SWEEP 4
MENU
5
Function Group
SWEEP
Menu Map
7
Description

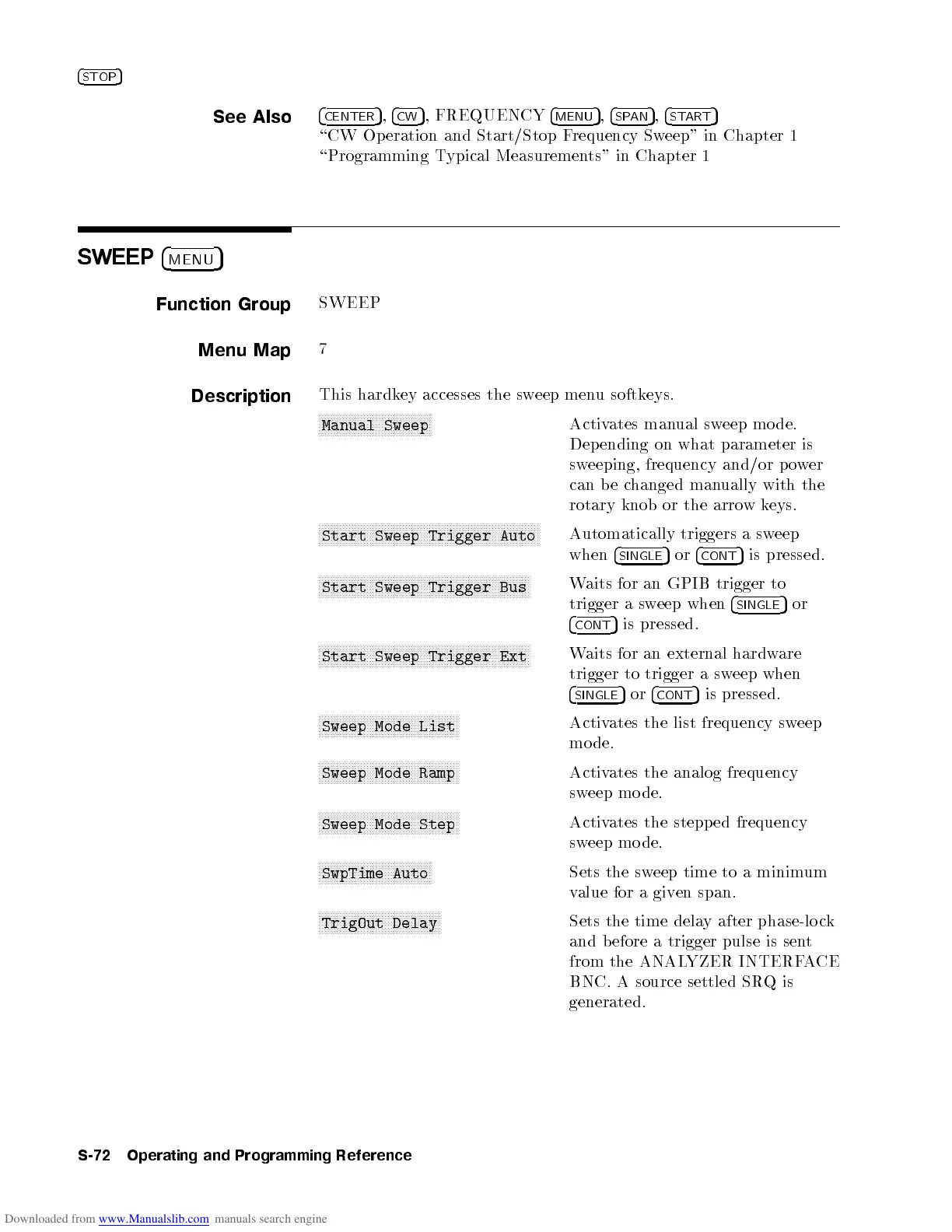

This hardkey accesses the sweep menu softkeys.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Manual Sweep
Activates manual sweep mo de.
Depending on what parameter is
sweeping, frequency and/or p o
wer
can b e changed manually with the
rotary knob or the arrow keys.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Start Sweep Trigger Auto
Automatically triggers a sweep
when 4
SINGLE
5 or 4
CONT
5 is pressed.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Start Sweep Trigger Bus
Waits for an GPIB trigger to
trigger a sweep when 4
SINGLE
5 or
4
CONT
5 is pressed.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Start Sweep Trigger Ext
Waits for an external hardware
trigger to trigger a sweep when
4
SINGLE
5 or 4
CONT
5 is pressed.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Sweep Mode List
Activates the list frequency sweep
mo de.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Sweep Mode Ramp Activates the analog frequency
sweep mo de.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
Sweep Mode Step
Activates the stepp ed frequency
sweep mo de.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
SwpTime Auto
Sets the sweep time to a minimum
value for a given span.
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
TrigOut Delay
Sets the time delay after phase-lo ck
and b efore a trigger pulse is sent
from the ANALYZER INTERFACE
BNC. A source settled SRQis
generated.
