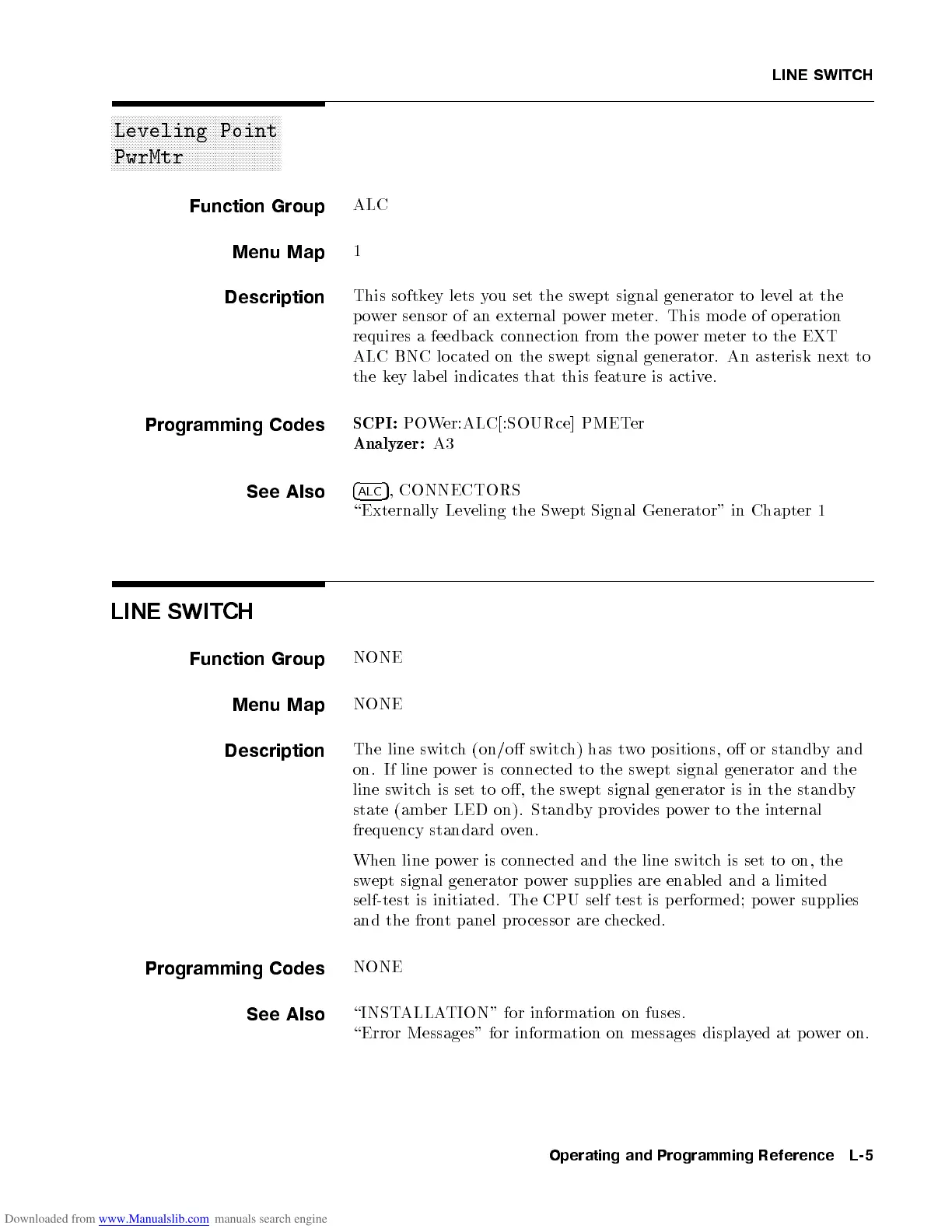

Leveling Point
PwrMtr
Function Group
ALC
Menu Map
1
Description
This softkey lets you set the swept signal generator to level at the
power sensor of an external p ower meter. This mo de of operation
requires a feedback connection from the power meter to the EXT
ALC BNC lo cated on the swept signal generator. An asterisk next to
the key label indicates that this feature is active.
Programming Codes
SCPI:
POWer:ALC[:SOURce] PMETer
Analyzer:
A3
See Also
4
ALC
5
, CONNECTORS
\Externally Leveling the Swept Signal Generator" in Chapter 1
LINE SWITCH
Function Group
NONE
Menu Map
NONE
Description
The line switch (on/o switch) has two p ositions, o or standby and
on. If line power is connected to the swept signal generator and the
line switch is set to o, the swept signal generator is in the standby
state (amber LED on). Standby provides p ower to the internal
frequency standard oven.
When line p ower is connected and the line switch is set to on, the
swept signal generator p ower supplies are enabled and a limited
self-test is initiated. The CPU self test is p erformed; power supplies
and the front panel pro cessor are checked.
Programming Codes
NONE
See Also
\INSTALLATION" for information on fuses.
\Error Messages" for information on messages displayed at p ower on.
Operating and Programming Reference L-5
