ALC Bandwidth
Selection
The ALC bandwidth defaults at factory preset to the auto selection
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
ALC Bandwidth Select Auto which selects the appropriate
bandwidth (high or low) for each application. To make the
bandwidth selection, the swept signal generator determines
which functions are activated and uses the decision tree shown in
Figure 1-23.

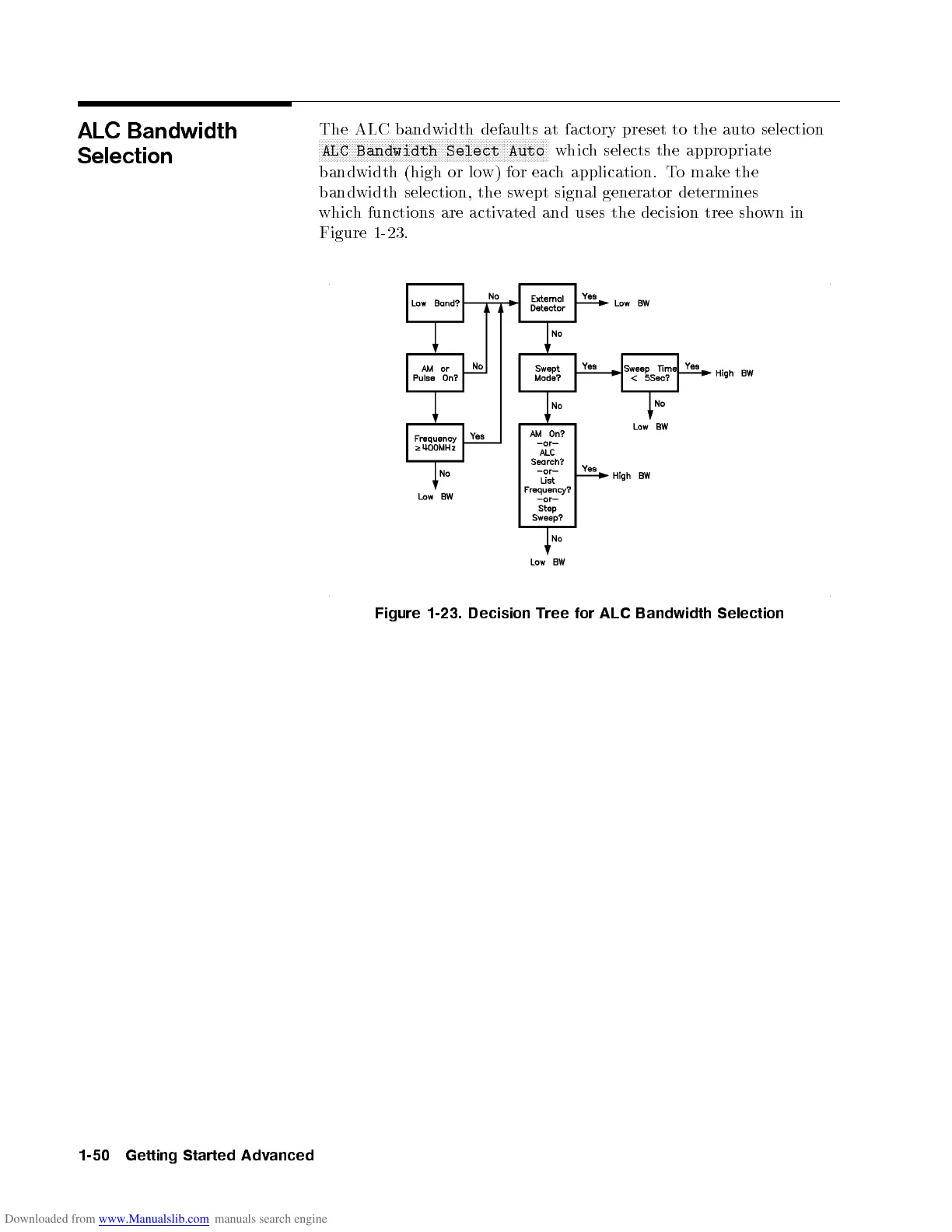

Figure 1-23. Decision Tree for ALC Bandwidth Selection
1-50 Getting Started Advanced
