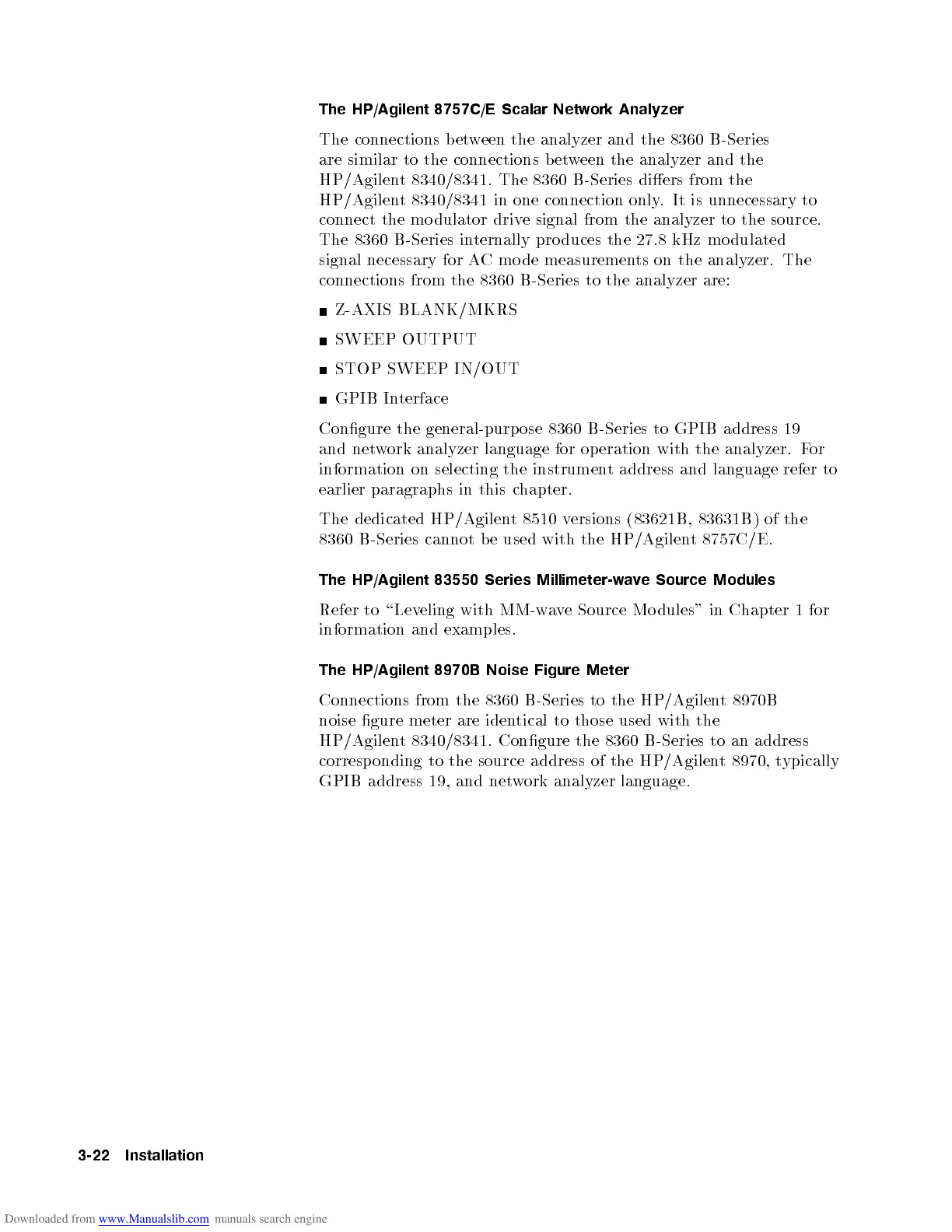

The HP/Agilent 8757C/E Scalar Network Analyzer
The connections b etween the analyzer and the 8360 B-Series
are similar to the connections b etween the analyzer and the
HP/Agilent 8340/8341. The 8360 B-Series diers from the
HP/Agilent 8340/8341 in one connection only. It is unnecessary to
connect the mo dulator drive signal from the analyzer to the source.
The 8360 B-Series internally pro duces the 27.8 kHz mo dulated
signal necessary for AC mo de measurements on the analyzer. The
connections from the 8360 B-Series to the analyzer are:
Z-AXIS BLANK/MKRS
SWEEP OUTPUT
STOP SWEEP IN/OUT
GPIB Interface
Congure the general-purp ose 8360 B-Series to GPIB address 19
and network analyzer language for op eration with the analyzer. For
information on selecting the instrument address and language refer to
earlier paragraphs in this chapter.
The dedicated HP/Agilent 8510 versions (83621B, 83631B) of the
8360 B-Series cannot be used with the HP/Agilen
t 8757C/E.
The HP/Agilent 83550 Series Millimeter-wave Source Modules
Refer to \Leveling with MM-wave Source Mo dules" in Chapter 1 for
information and examples.
The HP/Agilent 8970B Noise Figure Meter
Connections from the 8360 B-Series to the HP/Agilent 8970B
noise gure meter are identical to those used with the
HP/Agilent 8340/8341. Congure the 8360 B-Series to an address
corresp onding to the source address of the HP/Agilent 8970, typically
GPIB address 19, and network analyzer language.
3-22 Installation
