156 Chapter2
Making Measurements
Example 12: Making Time-Domain Measurements with Sweep Delay

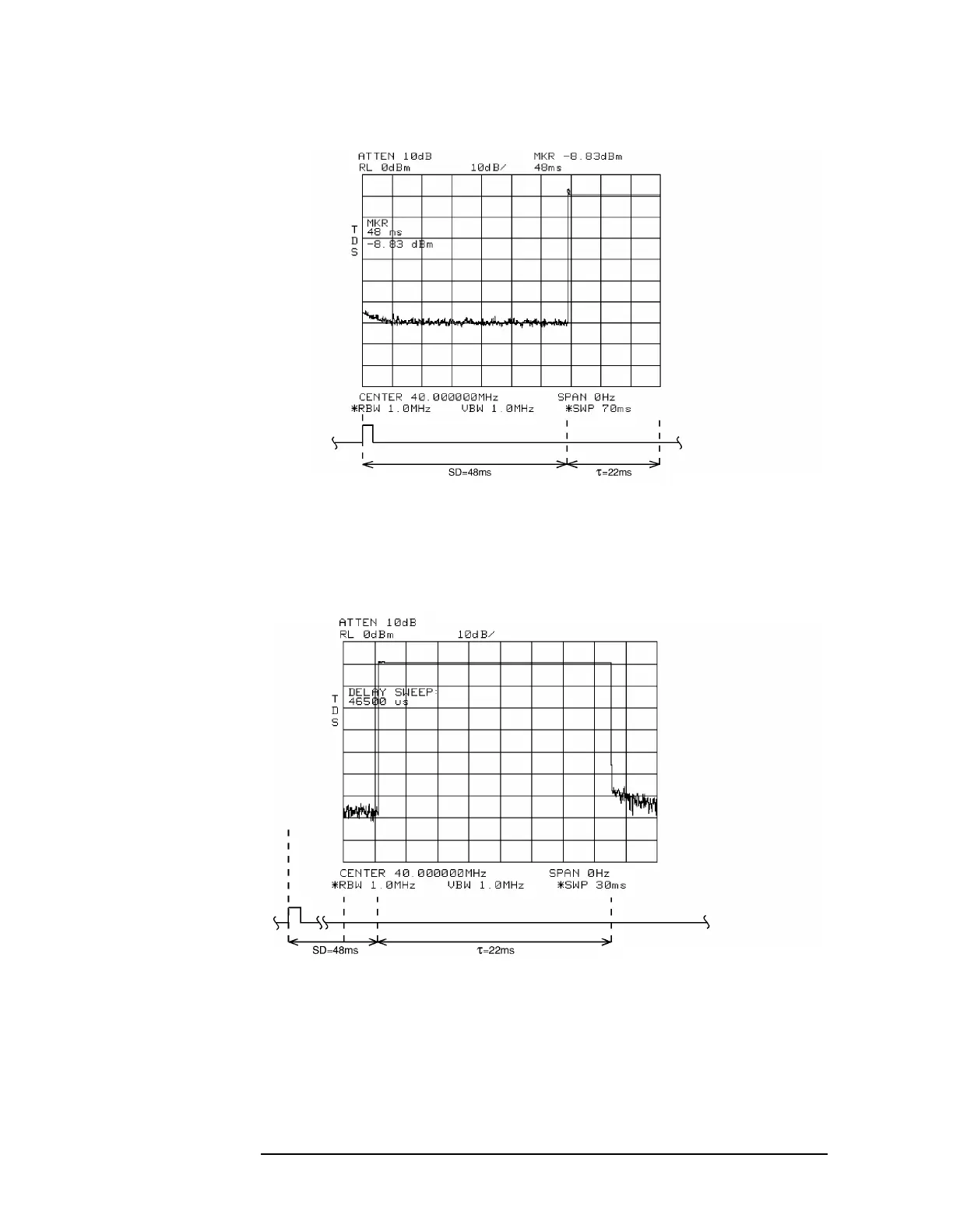

Figure 2-81 Display of Zero-Span without Sweep Delay
The sweep delay functions
DLY SWP [ ] and DLY SWP ON OFF allow you
to delay the start of a measurement sweep by up to 65 ms after a trigger
signal is received. This lets you zoom in on the event of interest, as
shown in Figure 2-82.
Figure 2-82 Display of Zero-Span with Sweep Delay
