Agilent Technologies 8561E User Manual

582 Chapter7
Language Reference
RL Reference/Range Level
Parameters
number dependent on the chosen amplitude units.
UP or DN increments by one vertical division in log mode, and in
a 1, 2, 5, 10 sequence in linear mode.
Query Response

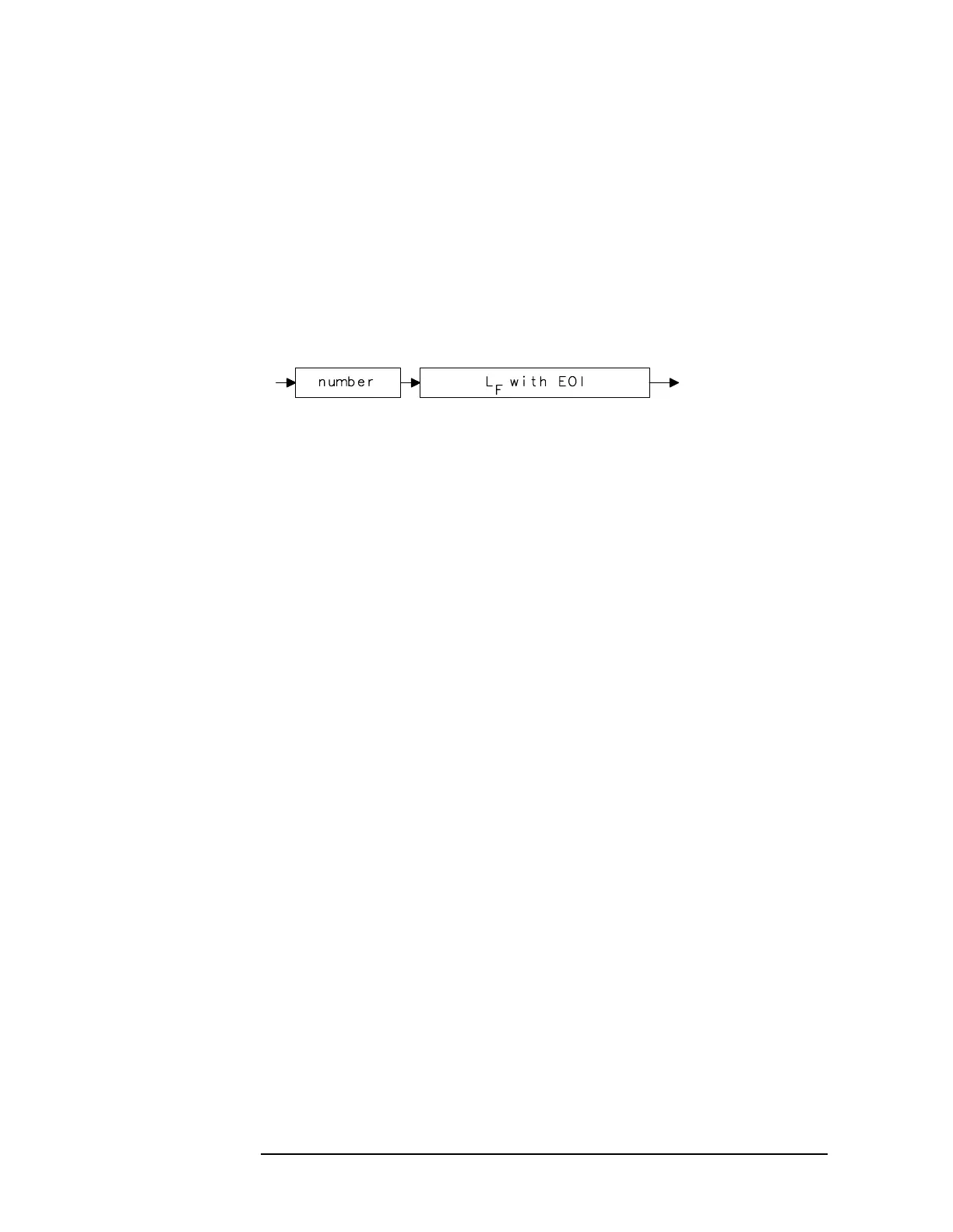

Figure 7-228 RL Query Response
Preset State
0 dBm
Example
10 OUTPUT 718;"IP;SNGLS;CF 300MHZ;SP 20MHZ;"
20 OUTPUT 718;"TS;MKPK HI;MKRL;TS;"
30 OUTPUT 718;"RL?;"
40 ENTER 718;Ref_level
50 PRINT "REFERENCE LEVEL IS",Ref_level,"DB"
60 END
