RQS Request Service Conditions
RQS Request Service Conditions
Syntax

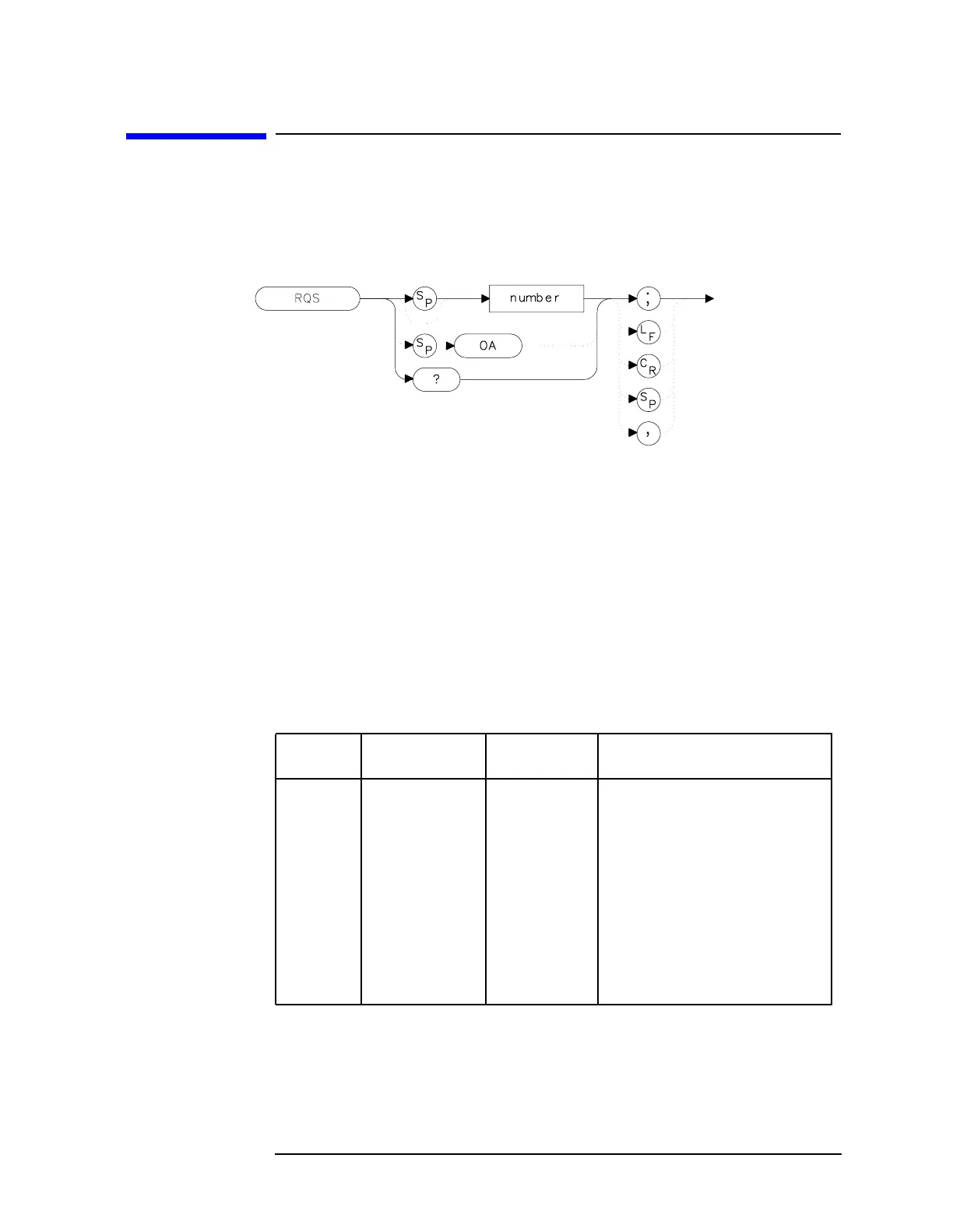

Figure 7-232 RQS Syntax
Description
The RQS command sets a bit mask that specifies which service requests
can interrupt a program sequence. Each service request has a
corresponding bit number and decimal equivalent of that bit number, as
shown in Table 7-1 on page 372. Use the decimal equivalents to set the
bit mask. For example, to set a mask for bits 4 and 5, add the decimal
equivalents (16 + 32 = 48), then send the command RQS 48. For more
service request information, refer to Chapter 5.
Table 7-9 Status Register
BIT
NUMBER
DECIMAL
EQUIVALENT
ANALYZER
STATE
DESCRIPTION
7 128 Not used
6 64 RQS Request service
5 32 ERROR
PRESENT
Set when error present
4 16 COMMAND
COMPLETE
Any command is completed
3 8 Not used
2 4 END OF
SWEEP
Set when any sweep is completed
1 2 MESSAGE Set when display message appears
0 1 TRIGGER Trigger is activated
