Chapter 7
455
Language Reference
DL Display Line
DL Display Line
Syntax

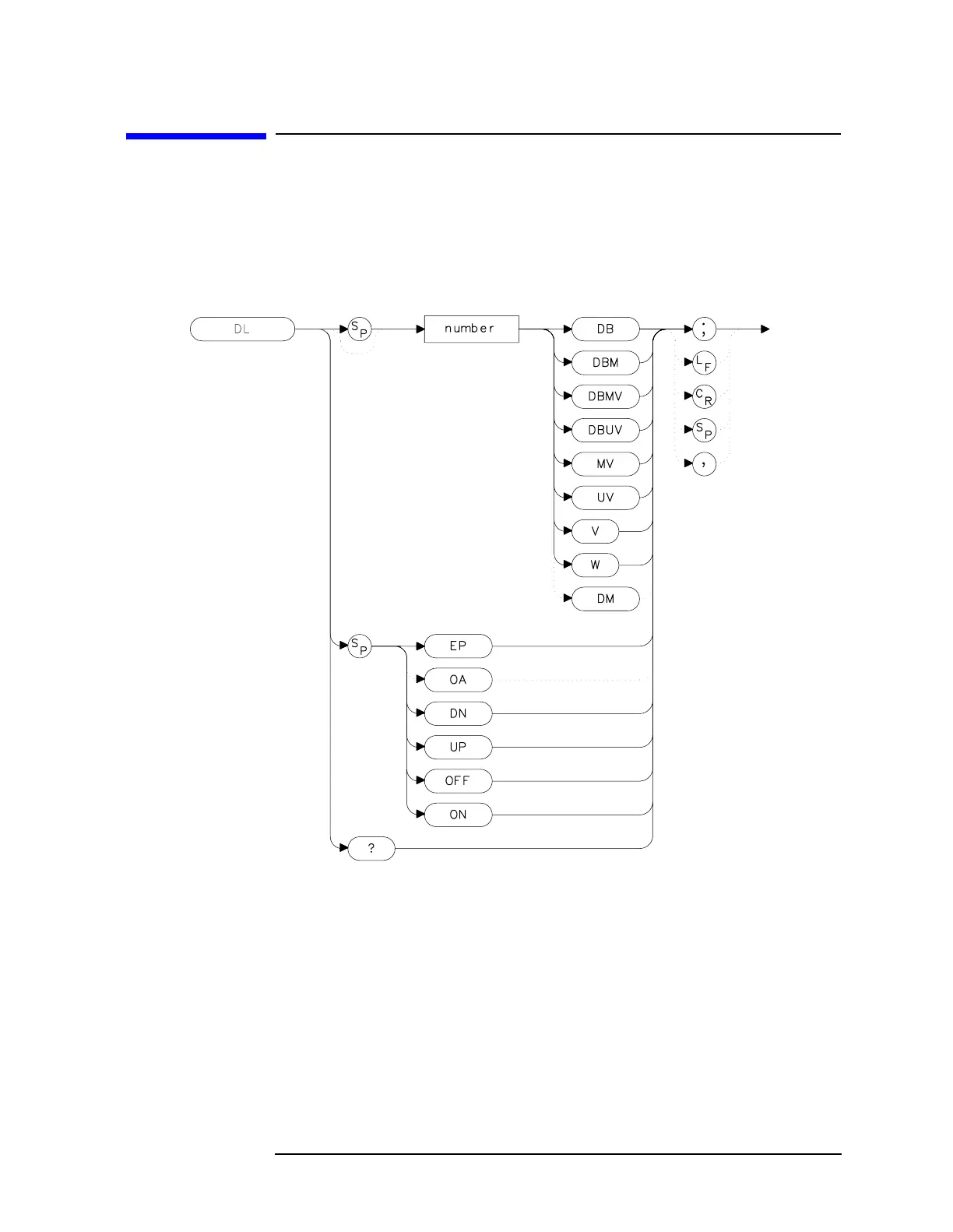

Figure 7-95
DL Syntax
Description
The
DL
command
activates
a
horizontal
display
line
for
use
as
a
visual
aid or for computational purposes
. The default value is 0 dBm.
