Chapter 7
527
Language Reference
MKOFF Marker Off
MKOFF Marker Off

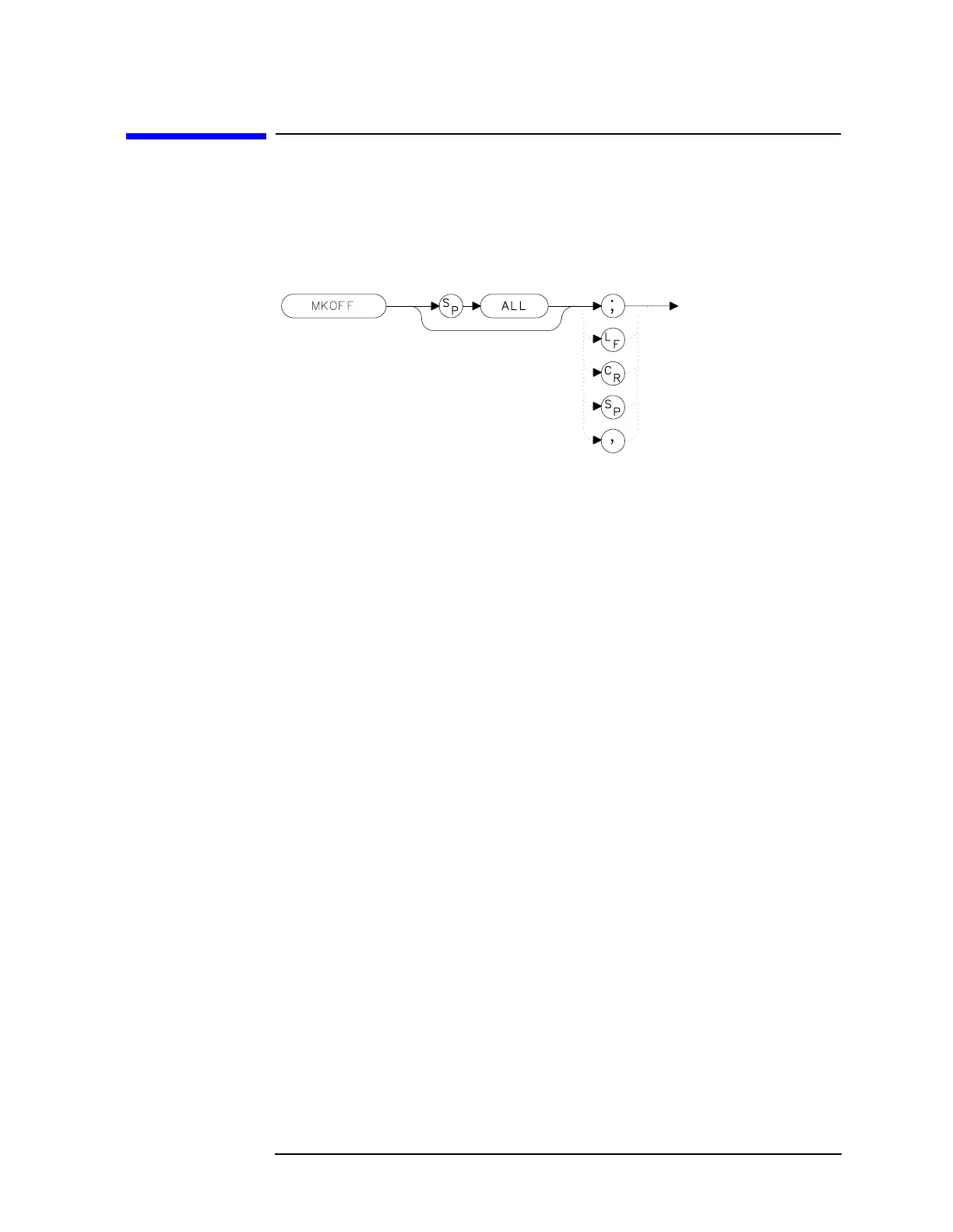

Syntax
Figure 7-175
MKOFF Syntax
Description
The MKOFF command turns off the active marker
. Executing
MKOFF
ALL;
turns off all markers
.
Example
10
OUTPUT
718;"MKOFF
ALL;"
20
END
526
528
