Using Bravo Diagnostics to control the device
16 Bravo Platform Quick Guide
3 If you are using a subset of the barrels in the head, select the barrels as follows:
a Click Set head mode.
b In the Head Mode Selector dialog box, select the barrels, and then click OK.

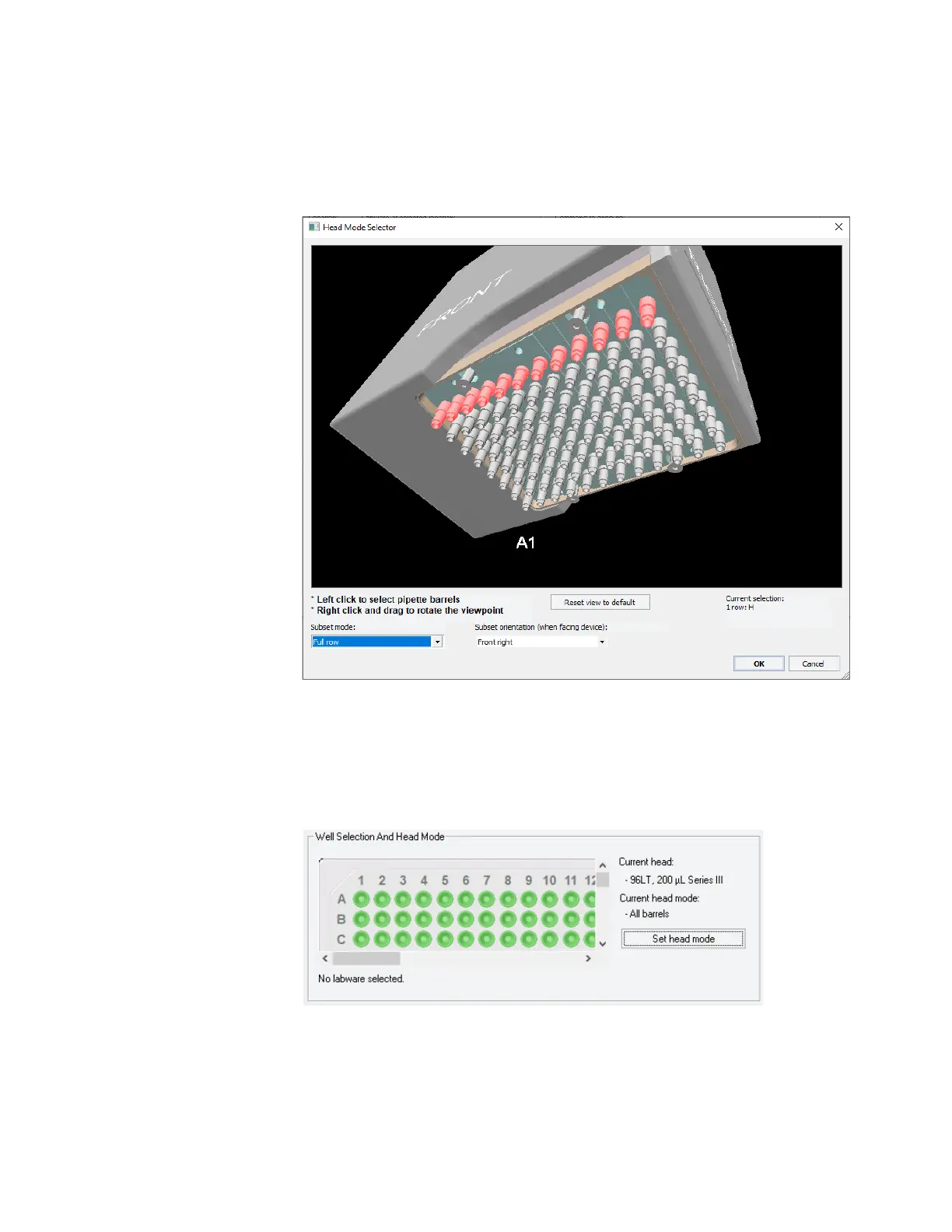

Figure
Head Mode Selector dialog box
Note: If you select a single row on a disposable-tip head, make sure you retract
the head stripper pins. For details, see the Bravo Platform User Guide.
4 If the head has fewer tips than the plate has wells or you are using the head in serial
mode, select the quadrant or quadrants in the Well Selection and Head Mode area.
Click a representative well in the plate graphic to select the corresponding quadrant
of wells. The selection appears below the plate graphic.
