Using Bravo Diagnostics to control the device
Bravo Platform Quick Guide
Running a task using Bravo Diagnostics
Before you start:
• Place the labware for the task at the Bravo deck location or locations.
• Ensure that the correct profile is initialized in Bravo Diagnostics. See “Initializing the
device in Bravo Diagnostics” on page 13.
• Ensure that the emergency-stop pendant is connected properly.
Refer to the following figure for this procedure.

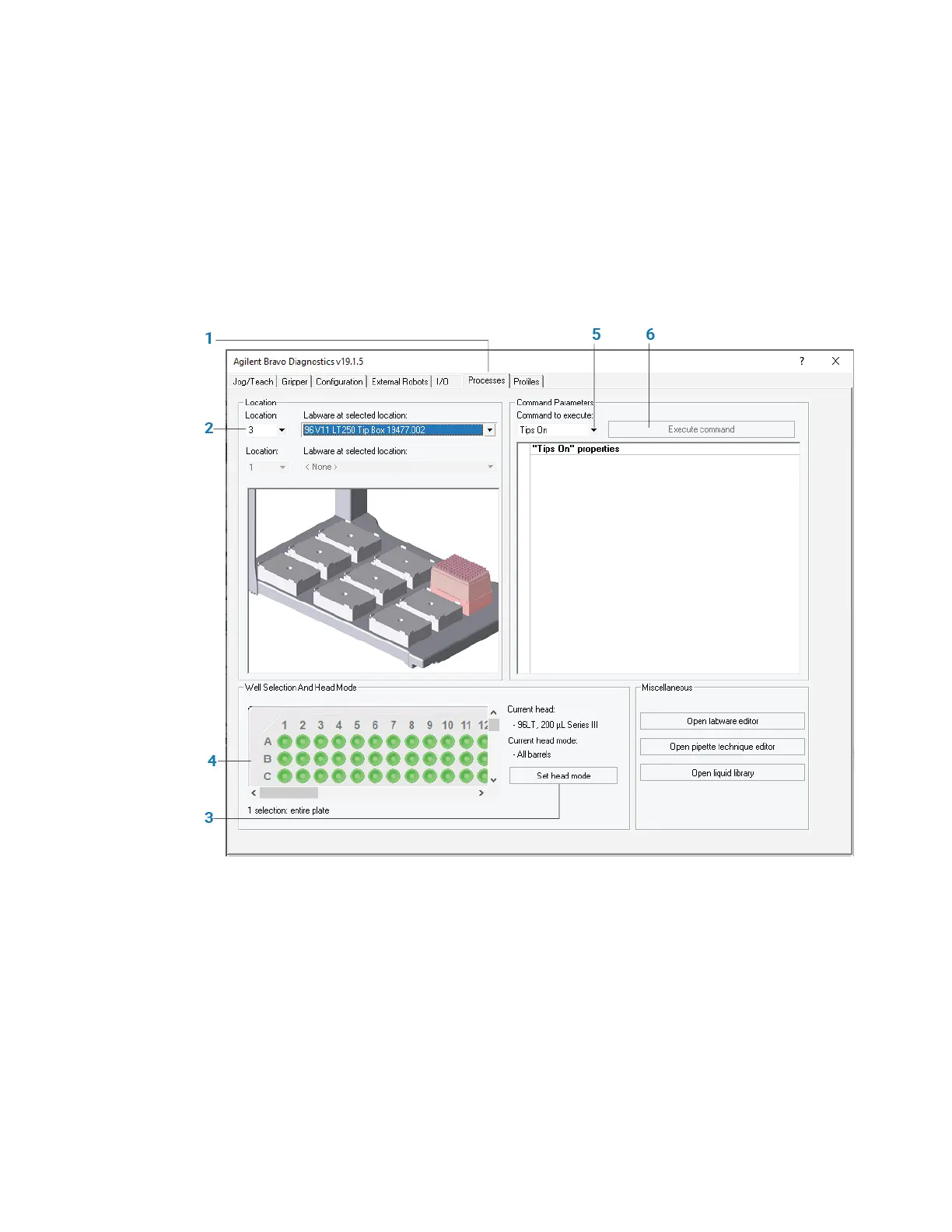

Figure
Task workflow in Agilent Bravo Diagnostics dialog box
To use Bravo Diagnostics to run a task:
1 In the Agilent Bravo Diagnostics dialog box, click the Processes tab.
2 Under Location, do the following:
a In the Location list, select the deck location of the labware that you placed on
the deck.
Alternatively, click the location in the graphical display.
b In the Labware at selected location list, select the type of labware.
c If the task involves two locations, repeat this step for the second location.
