Changing the Bravo head
18 Bravo Platform Quick Guide
Changing the mounted head
To uninstall the mounted Bravo head:

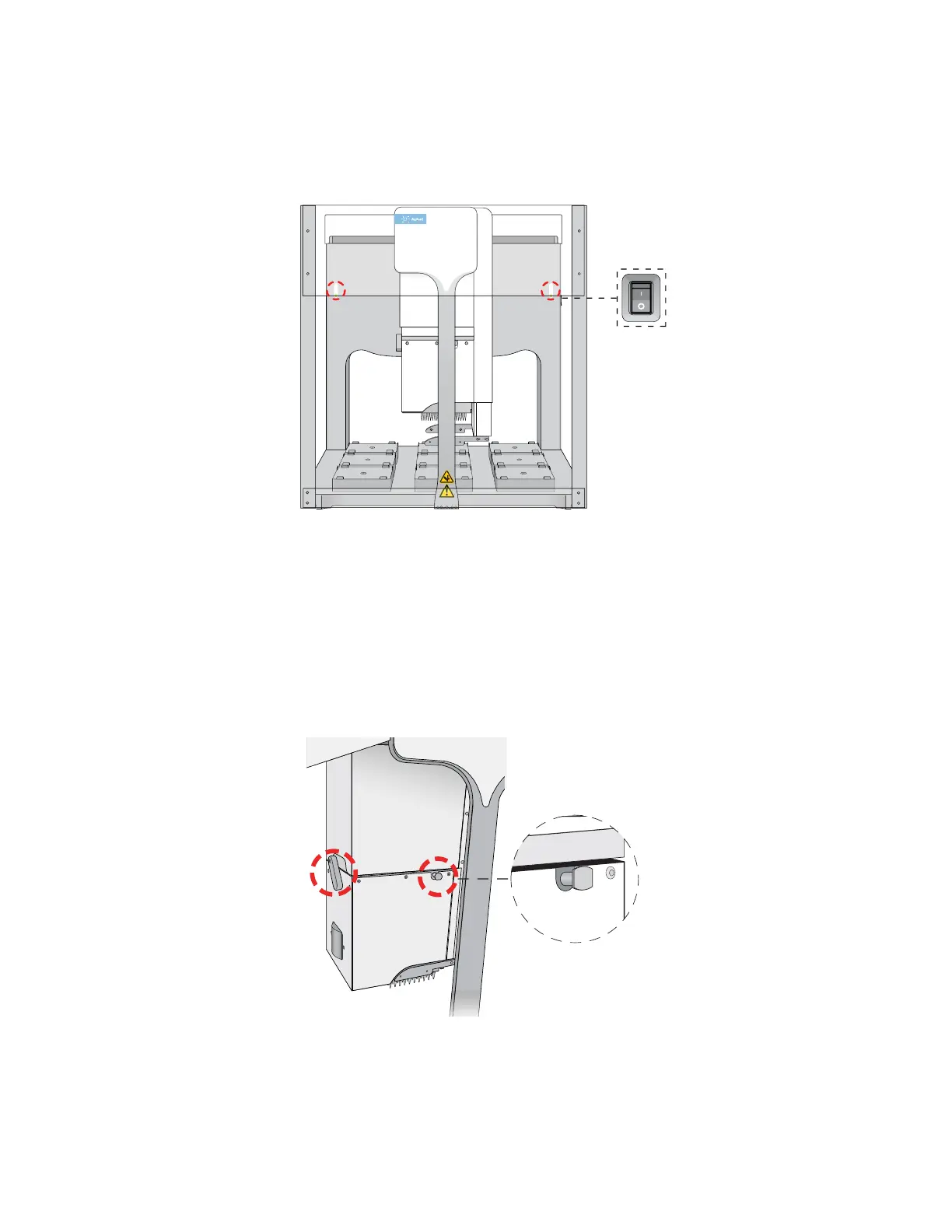

1 On the side of the Bravo Platform, press the power switch to the off (O) position.
2 Make sure that the head mount is at its home position above deck location 5, as the
preceding figure shows.
If necessary, manually move the head to the center of the deck.
3 To unlock the mounted head, refer to the following figure:
a Pull out and twist the (1) two head-retainer pins one-quarter turn (90°) so that
they remain retracted.
Note: The straight edge of the retainer pins should be horizontal.
b Turn the (2) head lock counterclockwise until it clicks into position.
Figure
Installed Bravo head: (1) retainer pin and (2) head lock
4 Reaching from the left side of the Bravo tie bar, grasp the head firmly as the
following figure shows:
a With your left hand firmly grip the left side of the head.
Bravo
