Agilent Technologies Bravo Platform

21
Changing the Bravo head
Bravo Platform Quick Guide
Figure

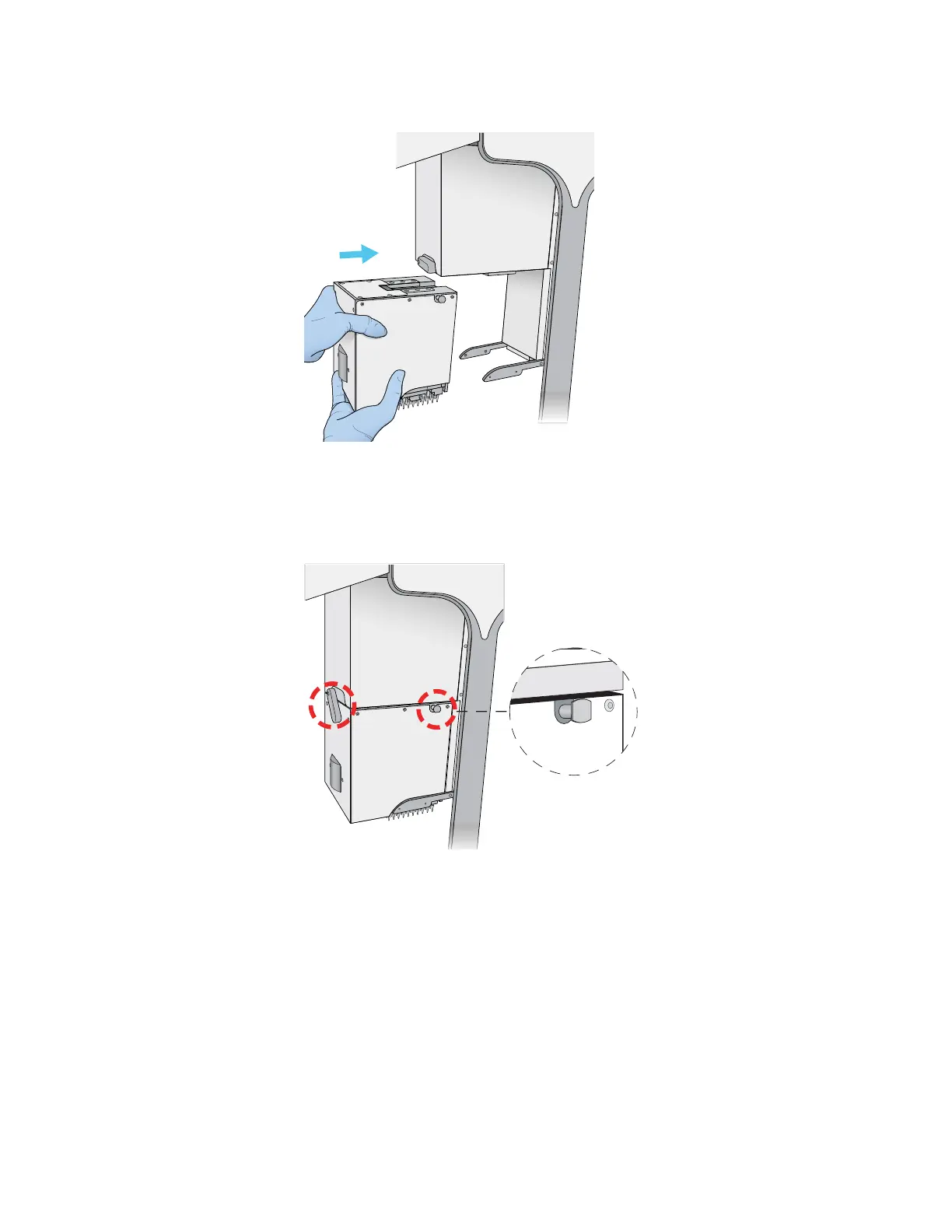

Installing a head in the Bravo head mount
Note: If you do not hear the pins snap into place, check that the straight edges
of the retainer pins are in the vertical position, as the following figure shows.
Attempt to rotate the pins to ensure that they are in the locked position. The
pins should not rotate freely.
Figure
Installed head: (1) retainer pin and (2) head lock
2
1
