Technical Description
SECTION I
5
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 51/140
SECTION I
Technical Description
The DS102 1Ph, DS202 1Ph, DS302 1Ph, DS402 1Ph, DS402 3Ph,
DS602 1Ph and DS602 3Ph pumps are dual-stage, rotary vane pumps
oil sealed, driven by a single-phase or three-phase electric motor.

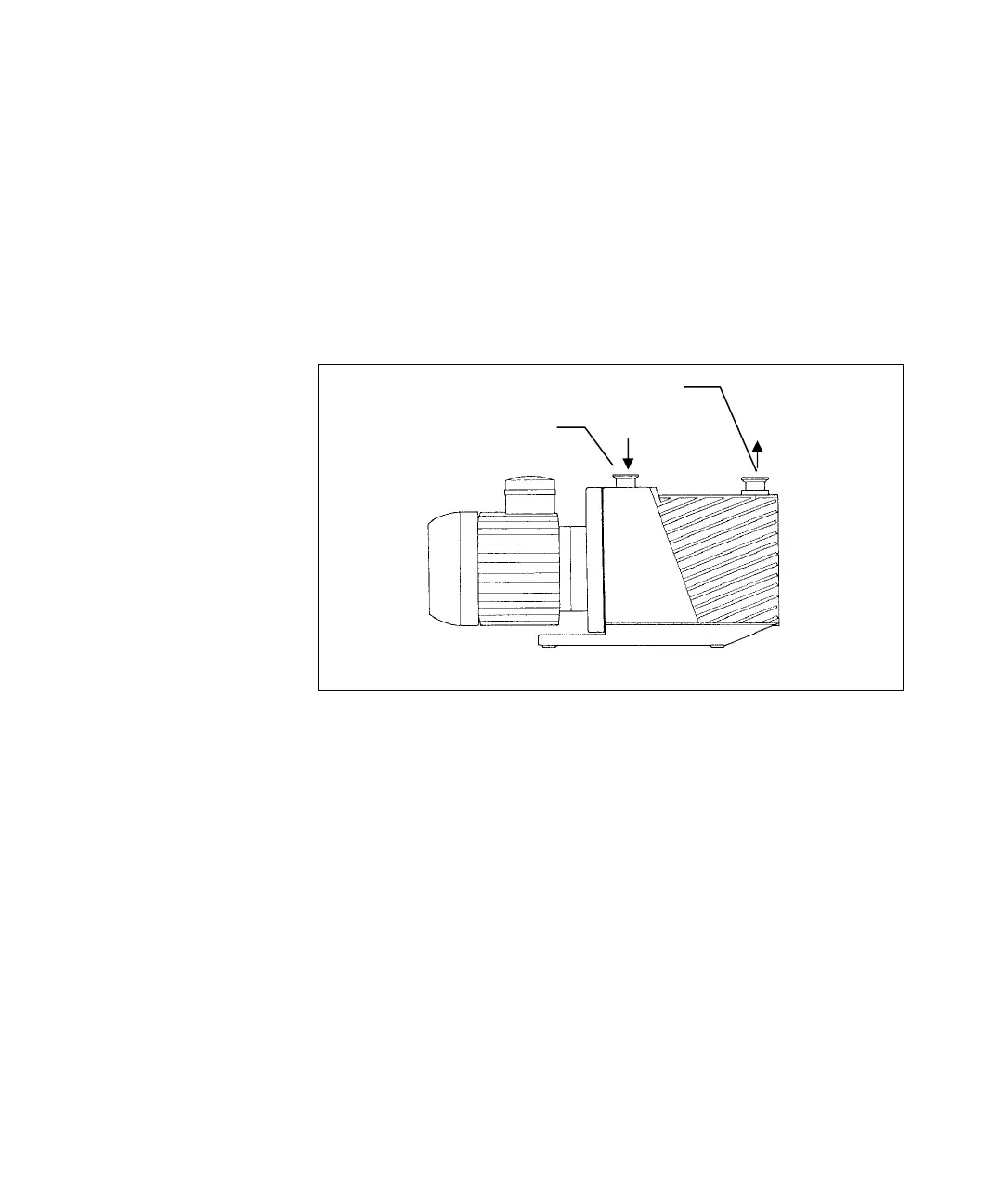

Figure 3
These vacuum pumps are suitable for pumping non corrosive gases.
The main features are:
all parts in direct contact with the fluid pumped are free of
copper alloys;
all materials are carefully selected to provide extended life;
a high capacity gas ballast device allow to pump condensable
vapors;
all the parts composing the pump are fully replaceable due to the
close machining tolerances and to the centering obtained by
using reference pins;
INLET POR
OUTLET POR
