Technical Description
Three Phase Universal Motors
5
Dual Stage Rotary Vane Pumps User Manual/ 87-900-937-01(L) 71/140

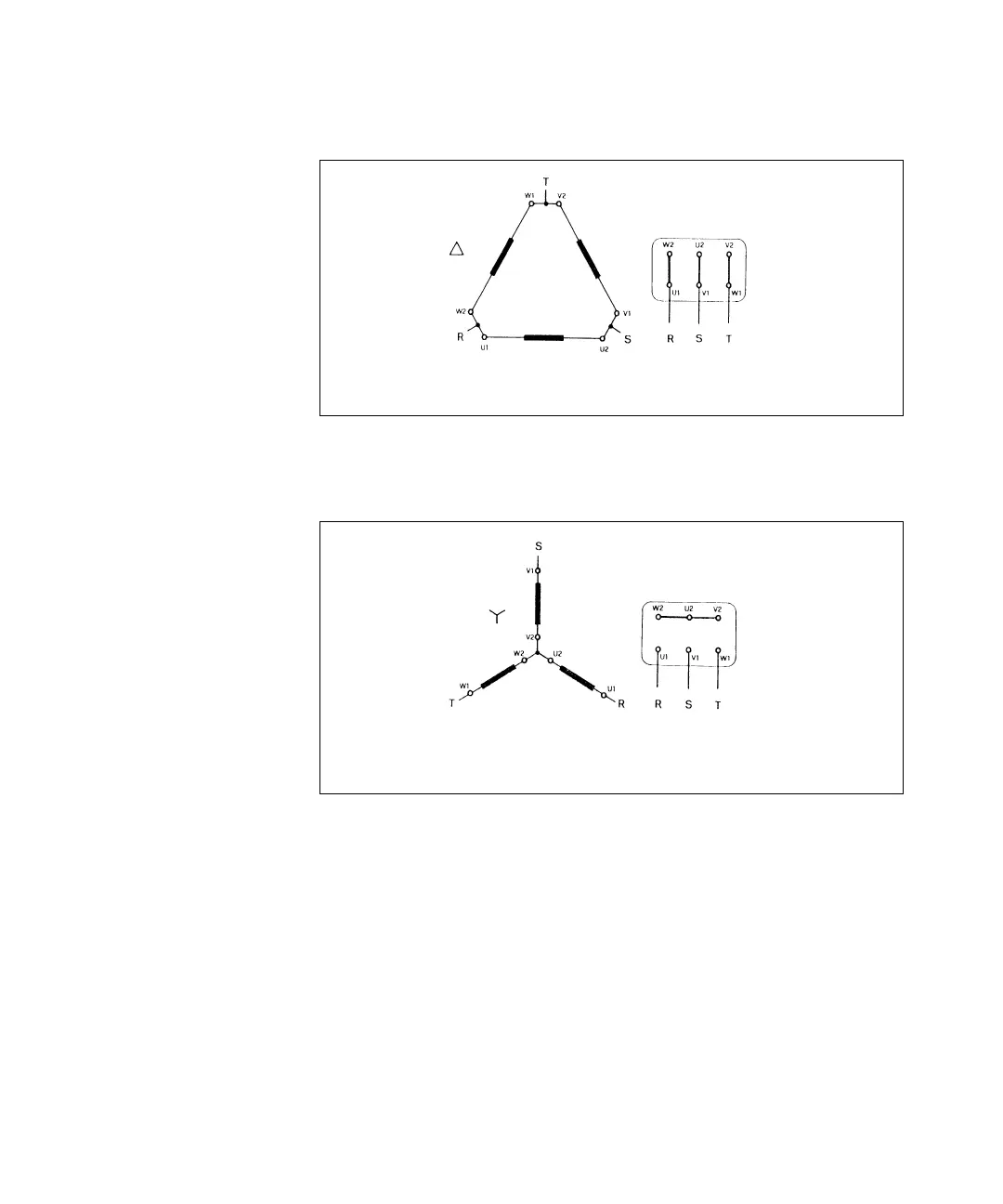

Figure 9 LOW VOLTAGE CONNECTION for power supply
of 220V to 230 V 50 - 60 Hz DELTA CONNECTION
Figure 10 HIGH VOLTAGE CONNECTION for power supply
380V to 460V 50 - 60 Hz STAR CONNECTION
