Agilent Technologies E4418B Service Guide

Replaceable Parts
Assembly and Disassembly Guidelines
5-18 Agilent E4418B/E4419B Service Guide
Replacing the Front Panel Power Reference Cable
Assembly
1. Remove the front panel from the power meter. (Refer to “Removing the A3
Front Panel Assembly”, on page 5-15 for details on removing the front
panel.)

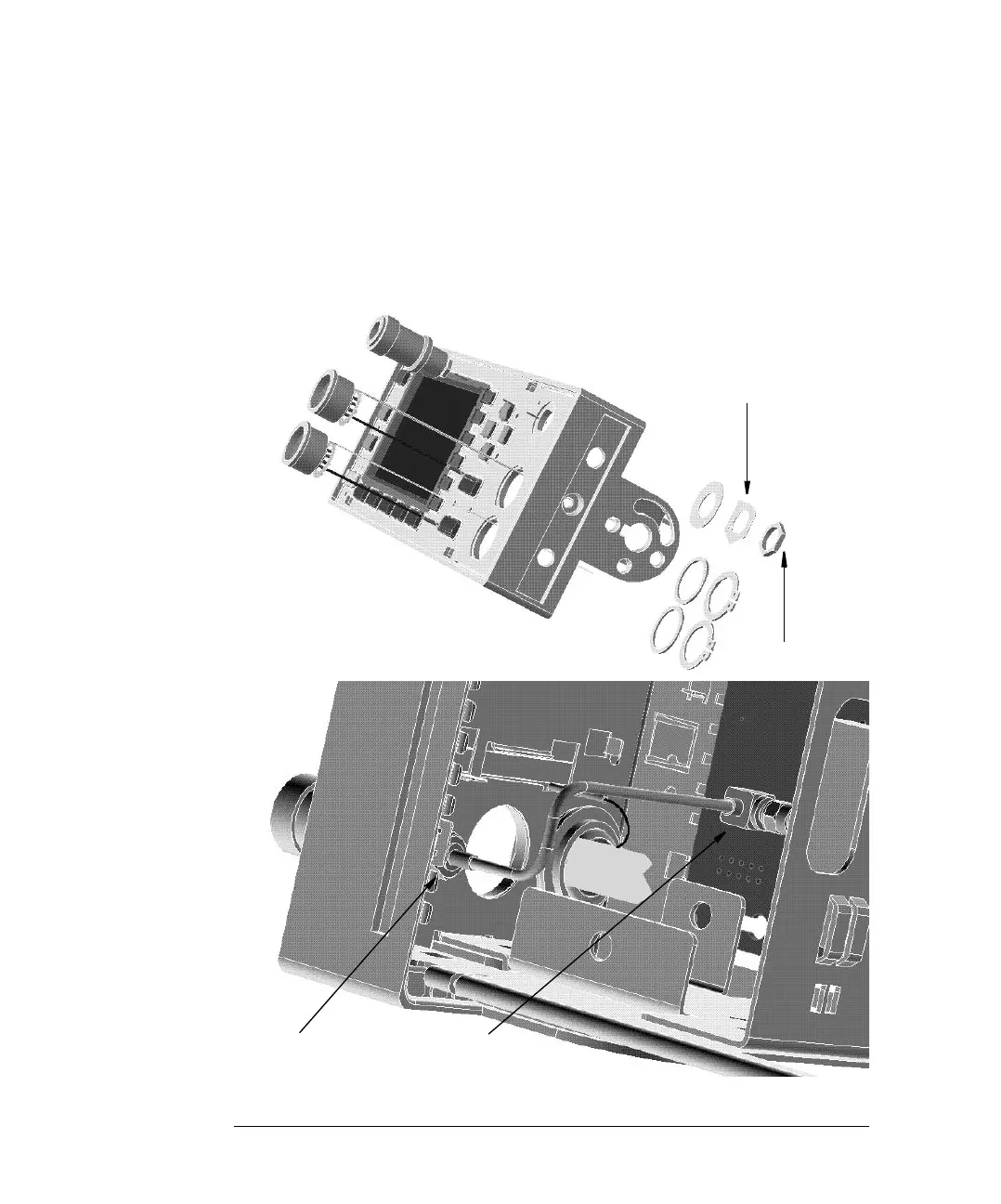

2. Replace the power reference output cable assembly using the replacement
kit and the torques indicated on the following diagrams.
25 lb/in
Fold up tab
after assembly
9lb/in
6lb/in
