Replaceable Parts
Assembly and Disassembly Guidelines
Agilent E4418B/E4419B Service Guide 5-19
Replacing the Rear Panel Power Sensor Cable Assemblies
(Options 002 and 003)
1. Disassemble the power meter to allow access to the rear panel connectors.
This is done by following steps 1 through 3 of the A4 comms assembly
removal procedure on page 5-11.
2. Replace the power sensor cable assembly(s) using the replacement kits. The
inner recess on the power sensor cable is used to locate the circlip when
assembling to the rear chassis.

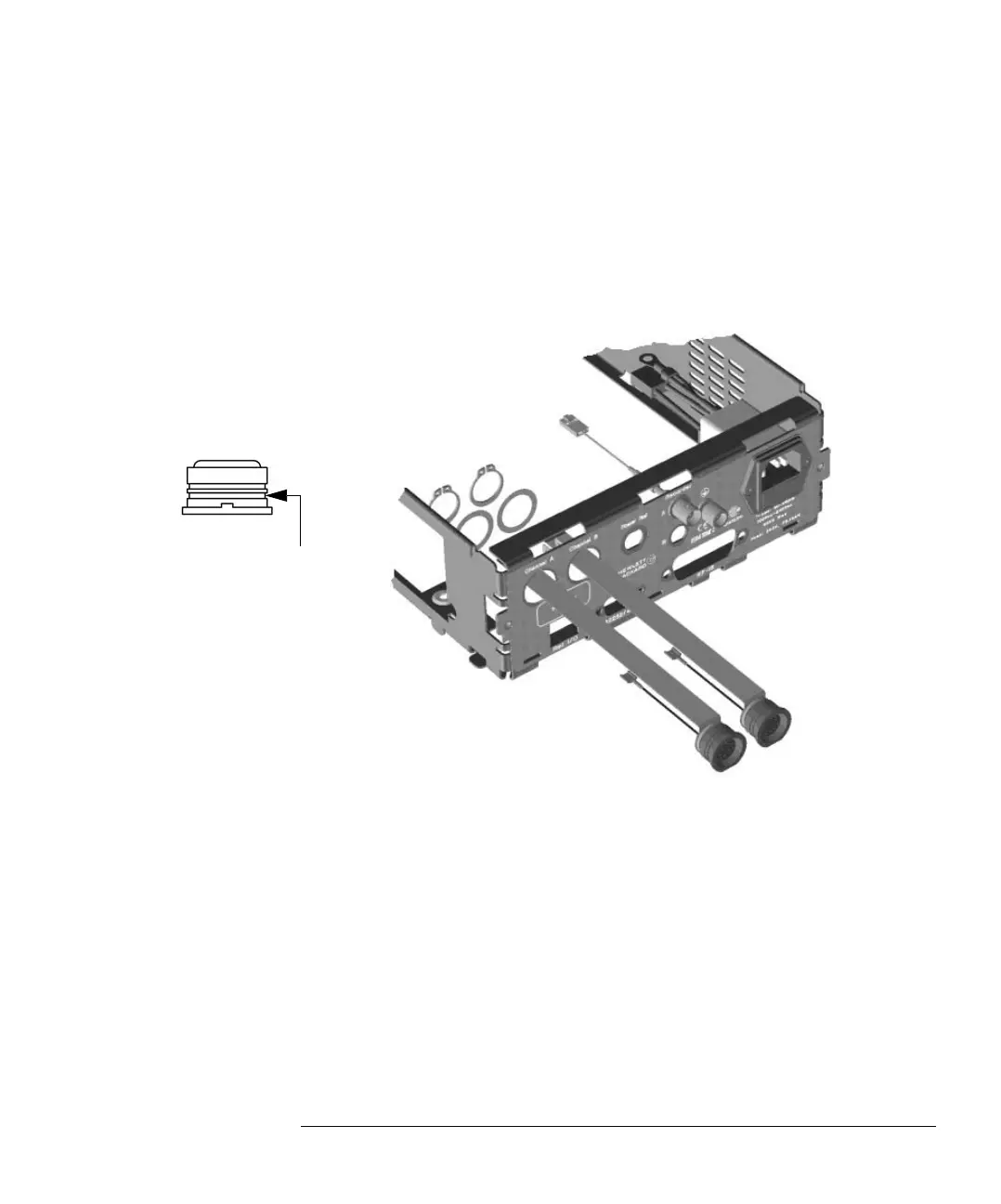

Rear panel sensor
retaining clip recess
