Replaceable Parts
Assembly and Disassembly Guidelines
Agilent E4418B/E4419B Service Guide 5-21
Replacing the Rear Panel Power Reference Cable Assembly
(Option 003)
1. Disassemble the power meter down to allow access to the rear panel
connectors. (Refer to “Removing the A4 Comms Assembly”, on page 5-11.)

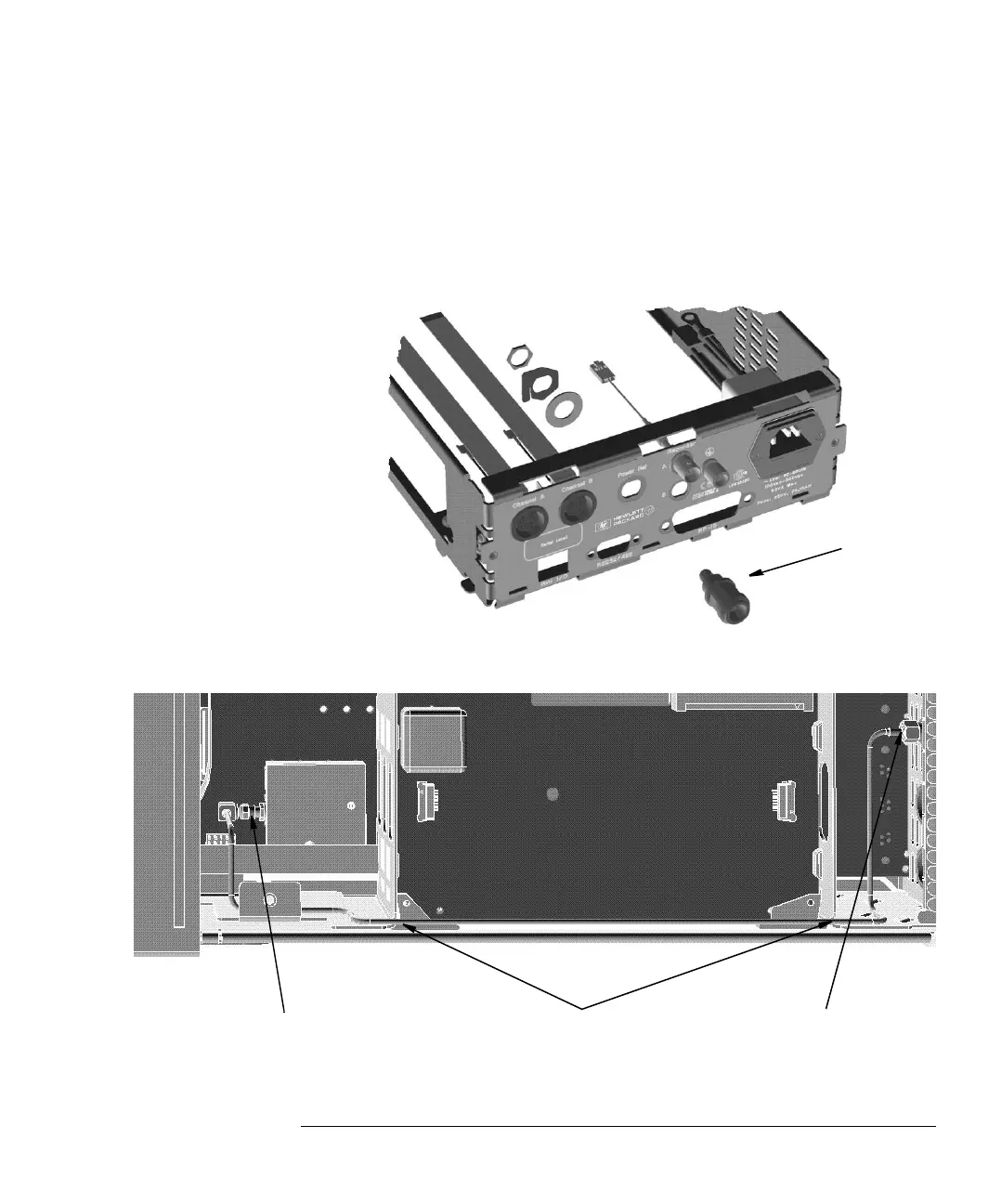

2. Replace the power reference cable assembly using the replacement kit and
the torques indicated on the following diagrams.
25 lb/in
6 lb/in 9 lb/in
tie wraps
