38
S:\Hp8960\Generic Documents\Manual Operation Getting Started Guide\Pi_manual operation getting started guide\chapters\is136_man_measurements.fm
AMPS/136 Mobile Measurements
Measuring Modulation Accuracy
This measurement can only be performed with the mobile on a digital traffic channel.
1. Establish a call with the mobile on a digital traffic channel.
2. Press the Measurement selection key.
3. Select the Modulation Accuracy measurement.
4. Press the Modulation Accuracy Setup (
F1) key.
5. Set the measurement parameters as needed for your measurement situation,
including: Multi-Measurement Count = 20 (not required, but used in this
example so you can see the effects of using multi-measurements)

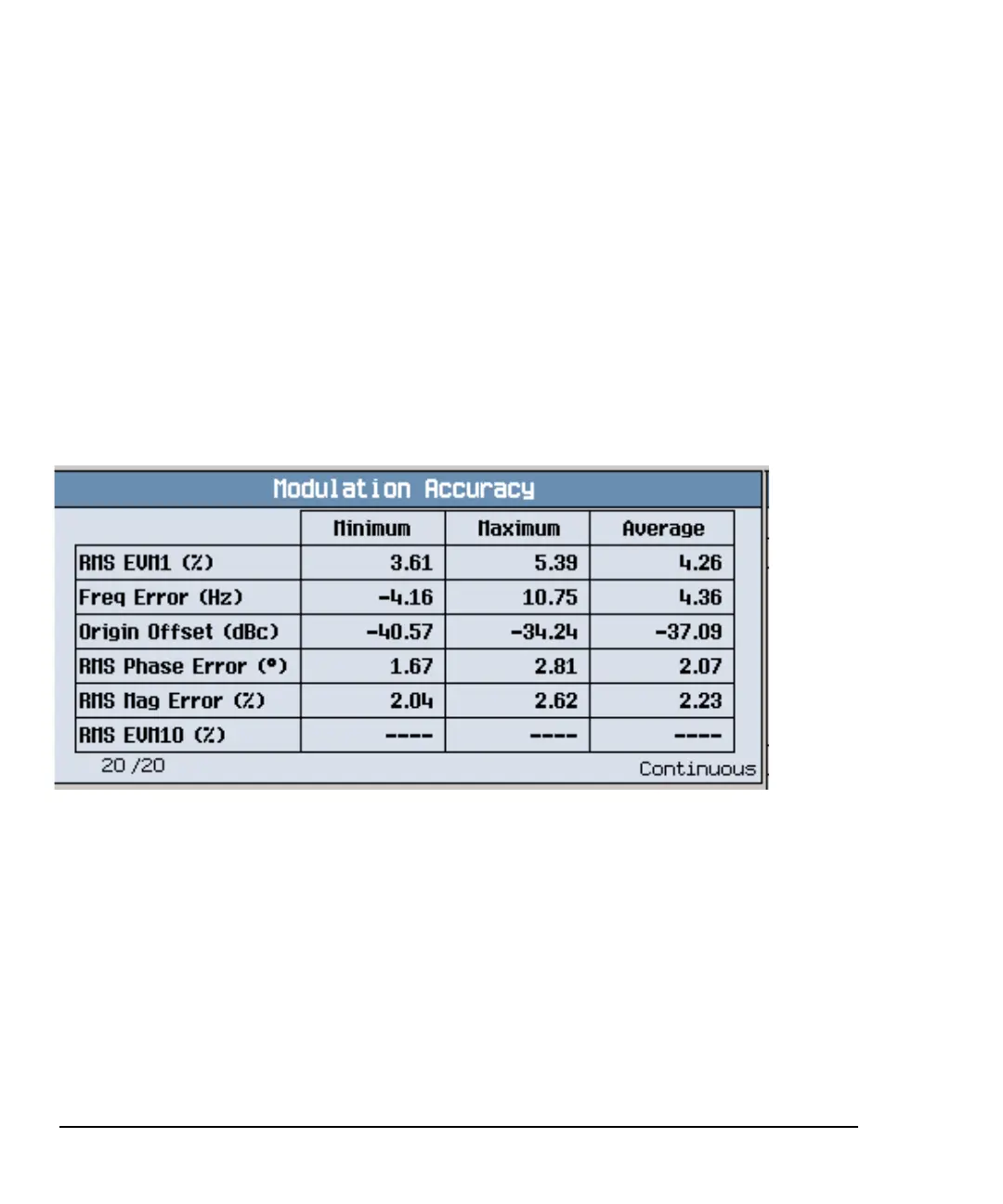

Typical modulation accuracy results when using multi-measurements are shown
above.
