cdma2000 Measurement Procedures

Measuring TX Spurious Emissions

1. Select the Tx Spurious Emissions measurement (see “B. Select measurements.” on

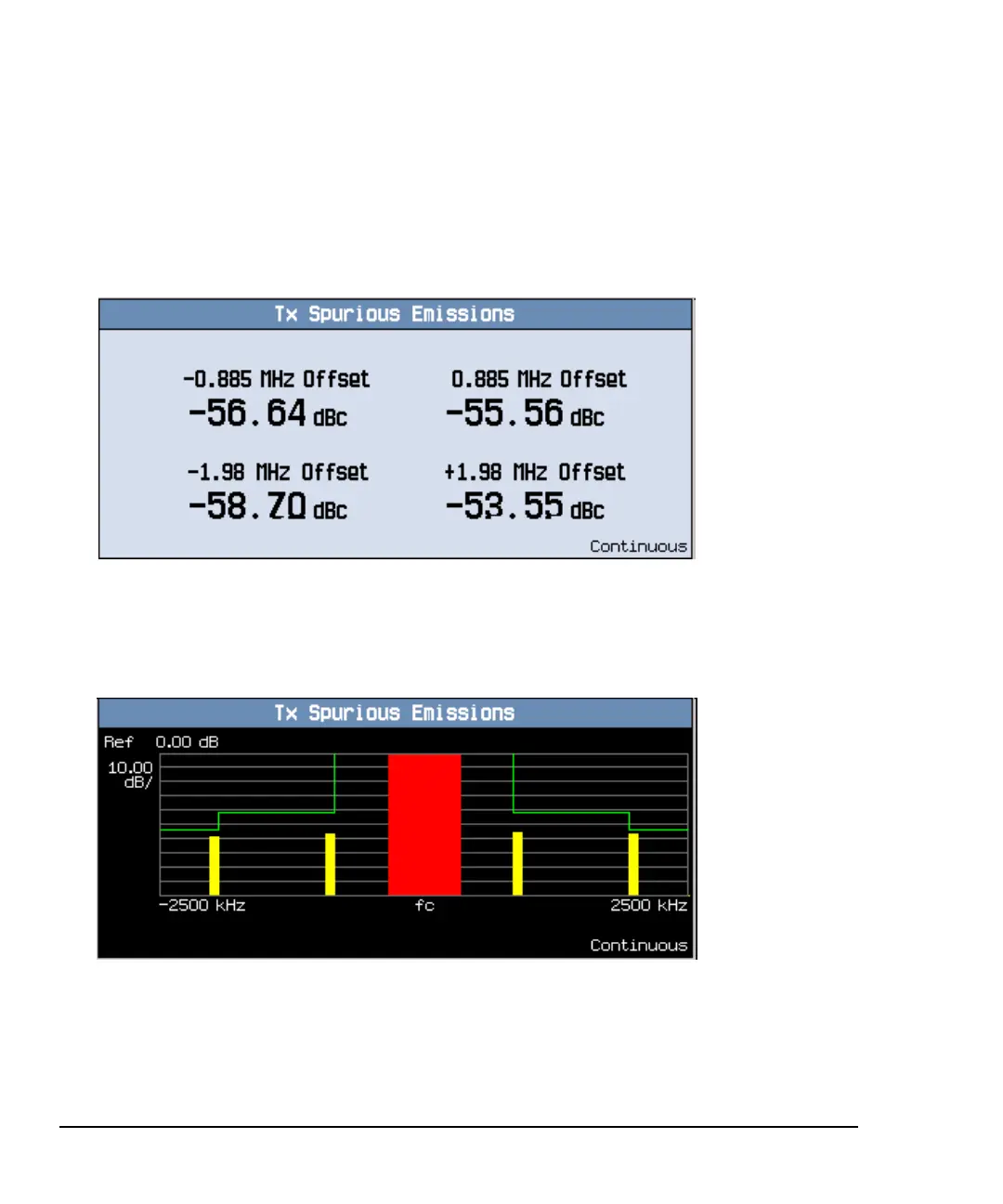

page 48). A typical display is shown below.

2. Press the Graph (

F3) key.

NOTE Press the Numeric (

F2) key if you want to return to Tx Spurious

Emissions measurement results displayed in tables.
