Chapter 3 129
Programming the Status Register System
Status Groups

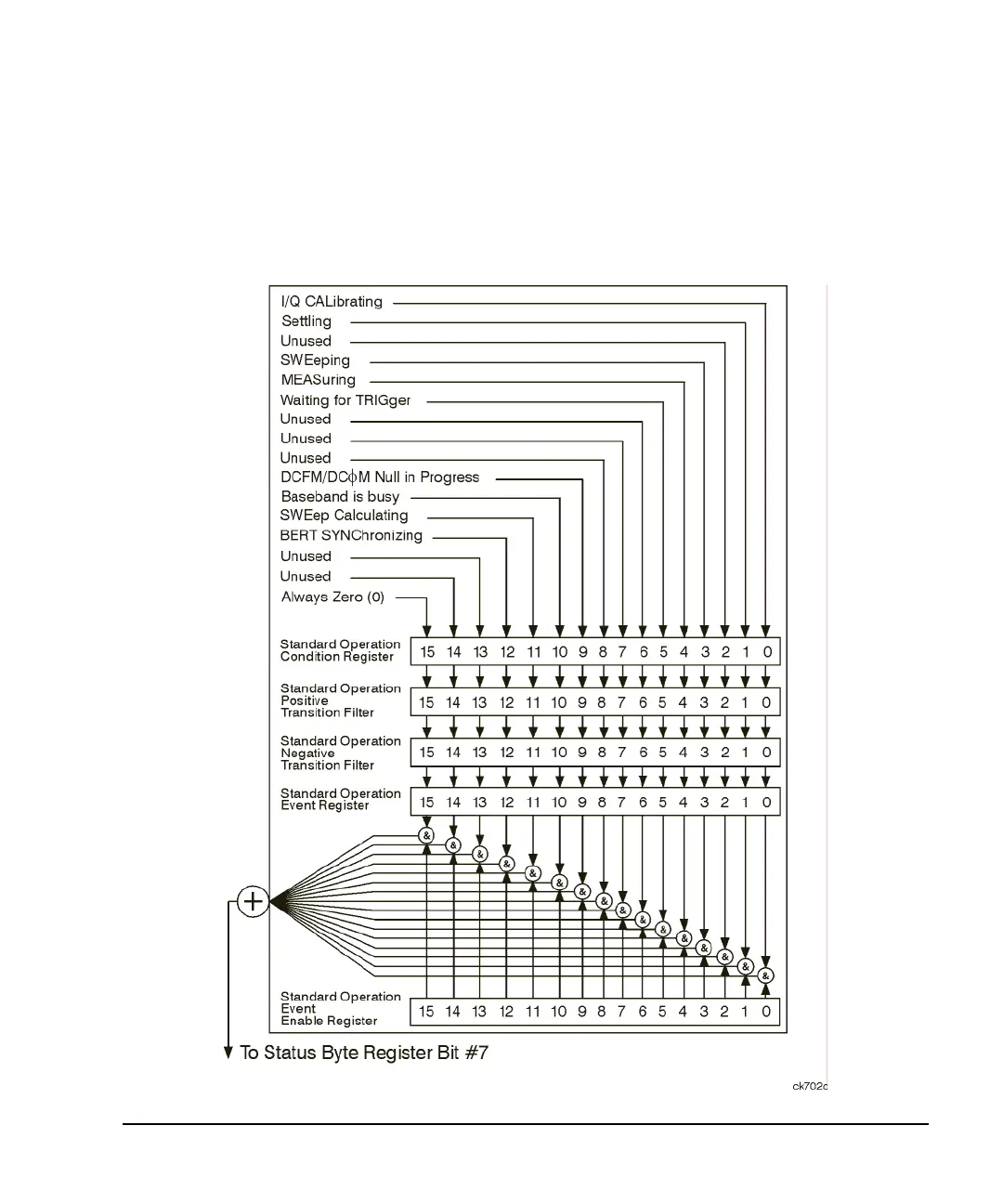

Standard Operation Status Group
The Operation Status Group is used to determine the specific event that set bit 7 in the Status Byte Register.
This group consists of the Standard Operation Condition Register, the Standard Operation Transition Filters
(negative and positive), the Standard Operation Event Register, and the Standard Operation Event Enable
Register.
To Next Page
