3-26 Service Guide E8364-90026
Tests and Adjustments PNA Series Microwave Network Analyzers
System Verification E8362B, E8363B, E8364B
4. In the Calibration Kit box, select the calibration kit that is being used by clicking on it.
The corresponding verification kit to use is selected for you and displayed in the
Verification Kit box. Refer to Figure 3-12.
5. Under Printer Output, click one of the following options. Refer to Figure 3-12.
• None: No printout of results.
• Tabular Data: Prints the verification data in tabular form which includes measured
data and uncertainty limits. For an example, refer to Figure 3-15 on page 3-28.
• Measurement Plots: Prints the verification data in graphical form. The graphical
form includes the measured data trace, factory supplied data trace, and uncertainty
limits. For an example, refer to Figure 3-16 on page 3-29.
• Both: Prints the verification data in both formats.
NOTE
For printed output, it is assumed that the printer has been tested and the
Windows 2000 driver is installed for the printer that is being used. The
system verification test prints to the printer that has been designated as the
default printer. (On the Windows Desktop display, click on My Computer,
Control Panel, and then Printers to verify the printer setup.)
6. Click Run.
7. Follow the instructions on the analyzer for performing a full 2-port calibration.
8. After completion of the full 2-port calibration, follow the instructions on the analyzer for
performing the system verification.
For the system verification, insert the devices as shown in Figure 3-13.

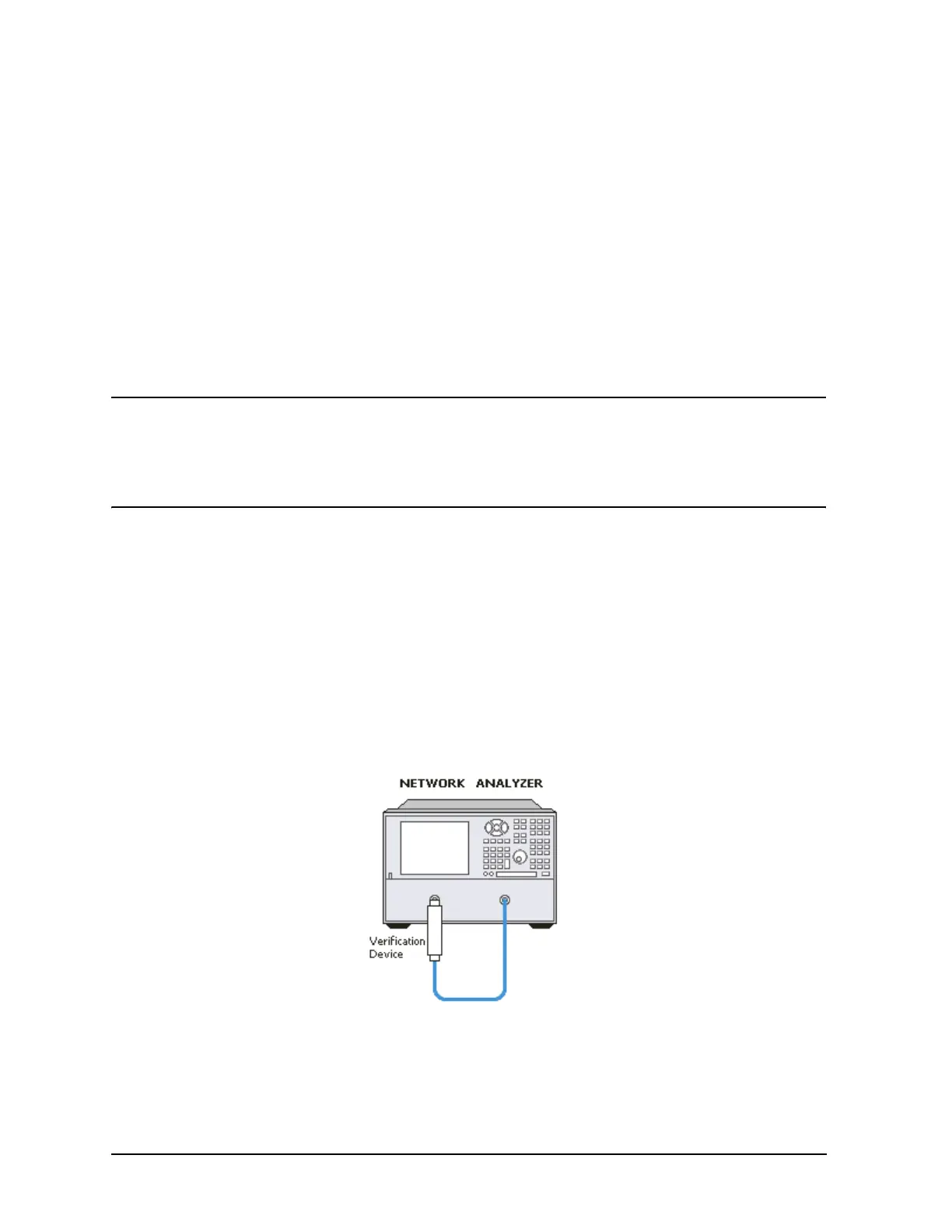

Figure 3-13 System Verification Device Connections
To Next Page
