Chapter 1 11
Introduction to Programming X-Series Applications
Using Embedded Help for Programming
Under the “Using Help” section, all lower “books” are SCPI reference sections sorted by
front-panel key “groups”, as marked on the front panel. For example “Marker Functions”
contains all the Marker-related hard keys.
Help Topics
Included in each Help topic are:
• Definitions for the current active function or Key
• SCPI Command parameters, including limits, presets, variables, and queries
• Associated Remote-Only commands (if used)

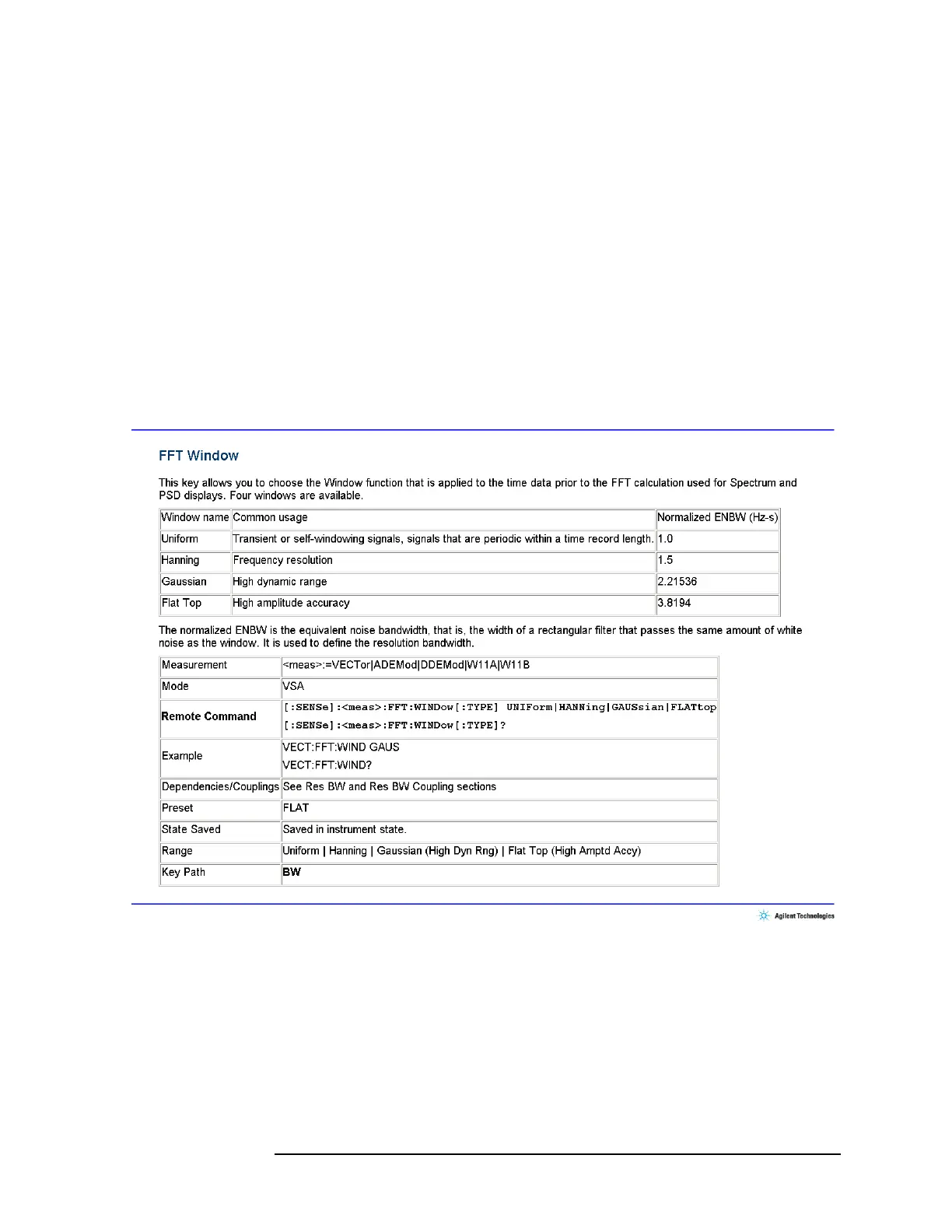

Figure 1-2 Example Help Topic - FFT Window
