The GTA Viewing/Fume Extraction Accessory (Optional)
Agilent Graphite Tube Atomizer GTA 120 User’s Guide 49

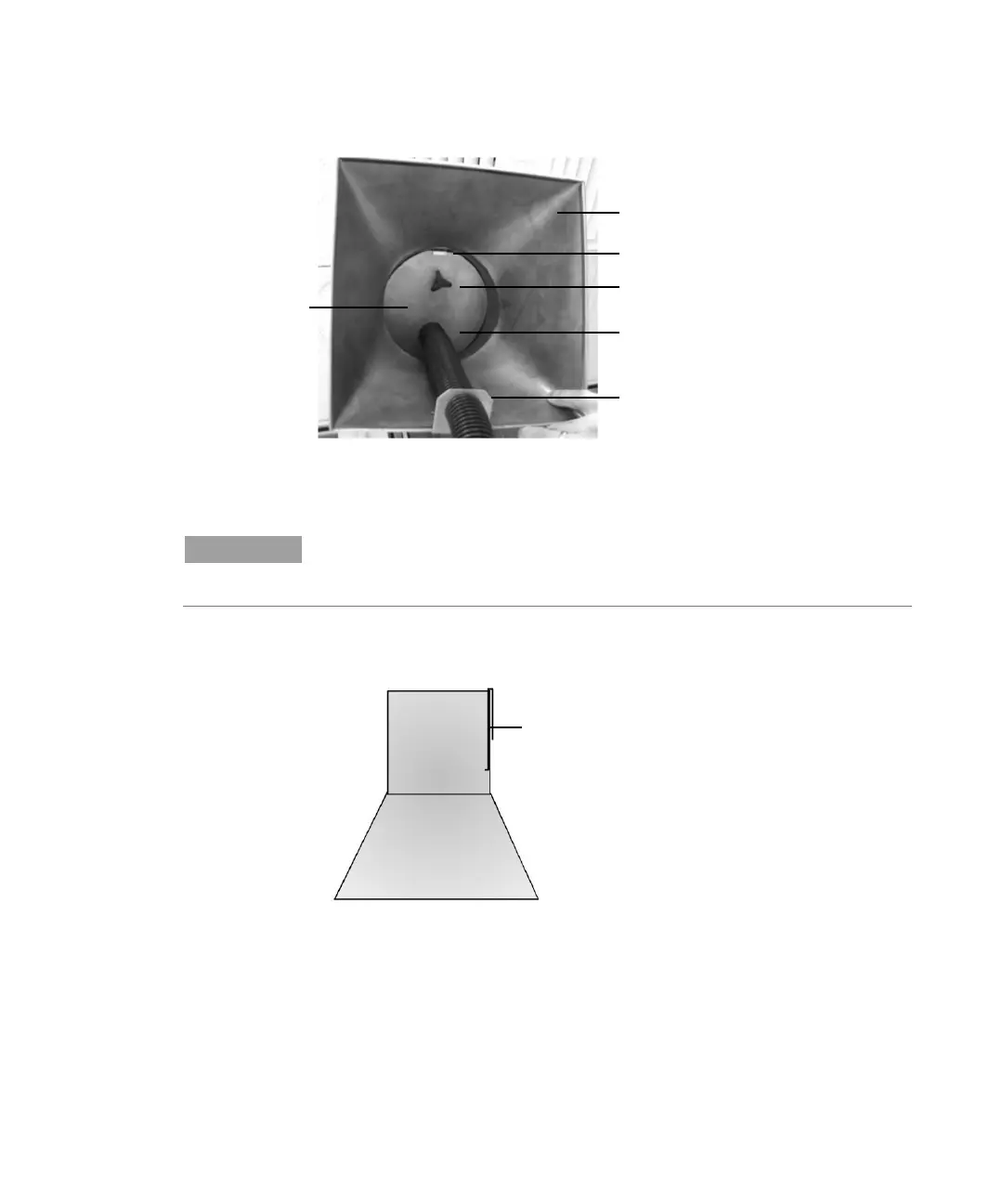

Figure 18. The GTA viewing/fume extraction accessory fits into the flue of the
instrument exhaust system
NOTE
It may be easier to disconnect the exhaust hose from the accessory first. Refer to
‘Removing the Exhaust Hose’ on Page 51.
1 Remove the flue from the extraction duct.
2 Fit the baffle rest over the edge of the flue. Refer to Figure 19.
Figure 19. The baffle rest fits over the top edge of the flue
3 Re-attach the flue to the extraction duct.
4 If you have a 125 mm duct, unscrew the large adaptor plate from
the exhaust hose and screw on the small adaptor plate. If you
have a 150 mm duct, the adaptor plate already attached to the
accessory will be sufficient for your duct.
Flue
Baffle rest
Handle
Exhaust hose
Hose clip
Adapter plate
Baffle rest step
