Making Your First Measurements
Running a Confidence Check on the Front Panel (Bluetooth)
Chapter 216

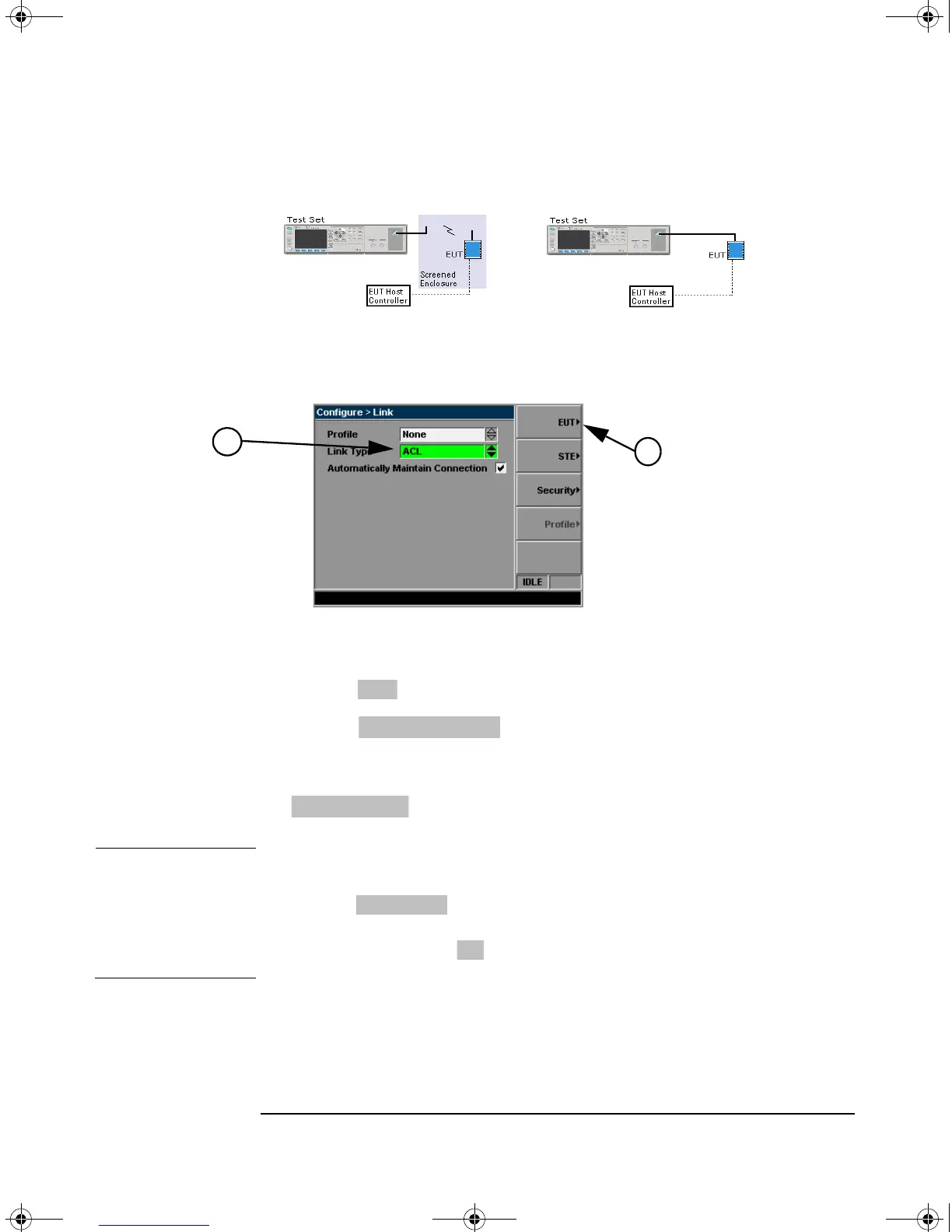

Figure 2-2 Test Set RFIO Connections
3. Press the
Config key.
Figure 2-3 Typical Configure Link Screen when ACL is Selected
4. Use the
Arrow and Select keys to highlight and select an ACL Link as shown in
Figure 2-3.
5. Press the softkey.
6. Press the softkey.
7. In a few seconds the Inquiry Results are displayed. An example is shown in
Figure 2-4. If no device is detected, check the EUT connection, and press the
softkey.
NOTE To apply Loss Compensation, for example for cable loss:
Press
Mode, . Use the Select key to check the Apply Loss
Compensation box. Use the arrow keys and numeric pad to enter values in the
Fixed Loss field. Press the softkey.
