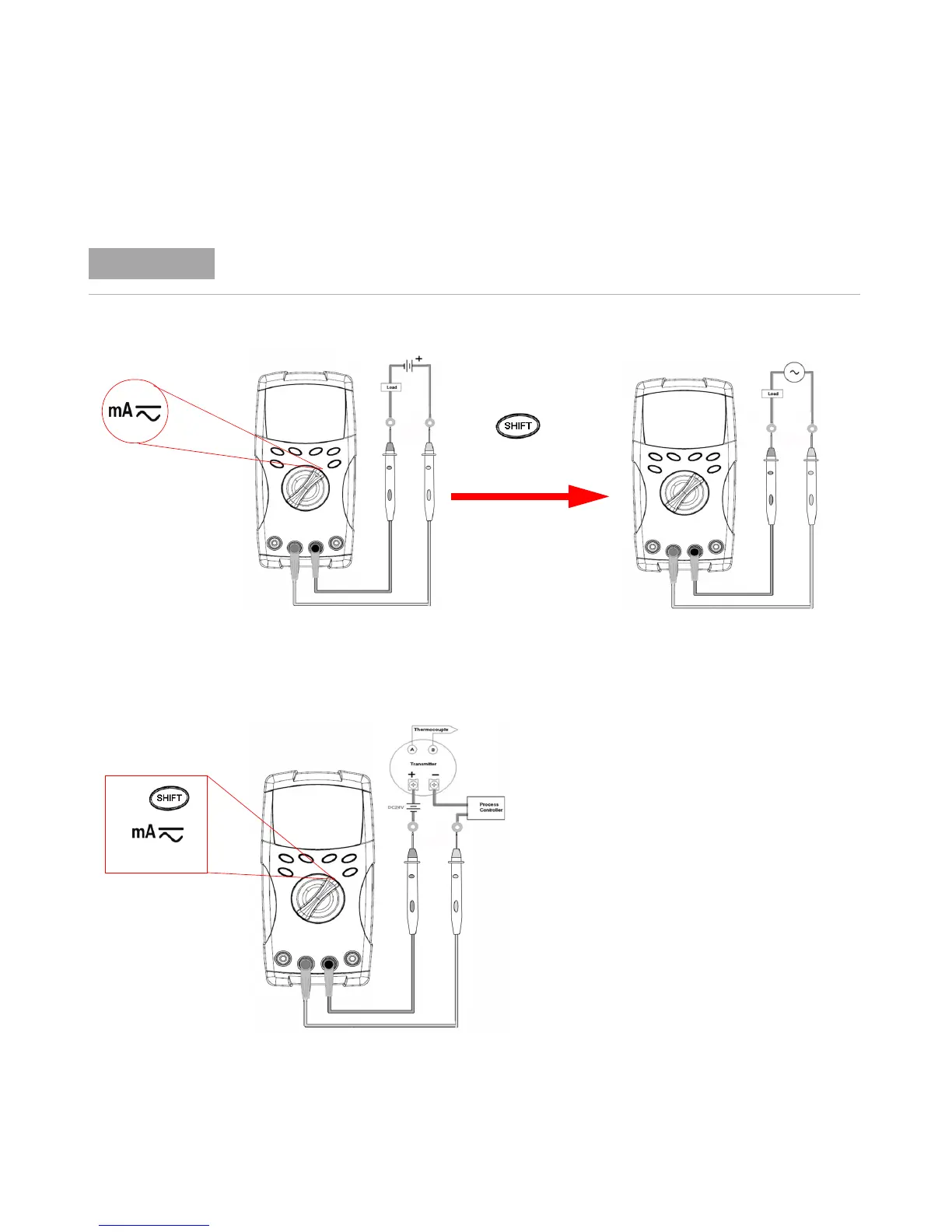

Measuring Current (< 440 mA)
Measuring % Scale of 4 – 20 mA
If the measured value is lower than 440 mA, use the mA or μA current measurement mode.
Press to select
AC current measurement
mode.
The % scale of 0 – 20 mA or 4 – 20 mA
is selectable in setup mode. The mA%
scale for 4- 20 or 0- 20 is indicated on
primary display and the bar graph
indicates the current value. The 25%
scale readout represents DC 8 mA at
4 – 20mA, and DC 5 mA at 0 – 20mA.
Press
at
position
