32 U1241A/U1242A User’s and Service Guide
4 Service and Maintenance
3 Gently remove the defective Fuse 1 by prying one end of the fuse and
removing it out of the fuse bracket, see Figure 4- 10.
4 Replace a new fuse of the same size and rating into the center of the
fuse holder.

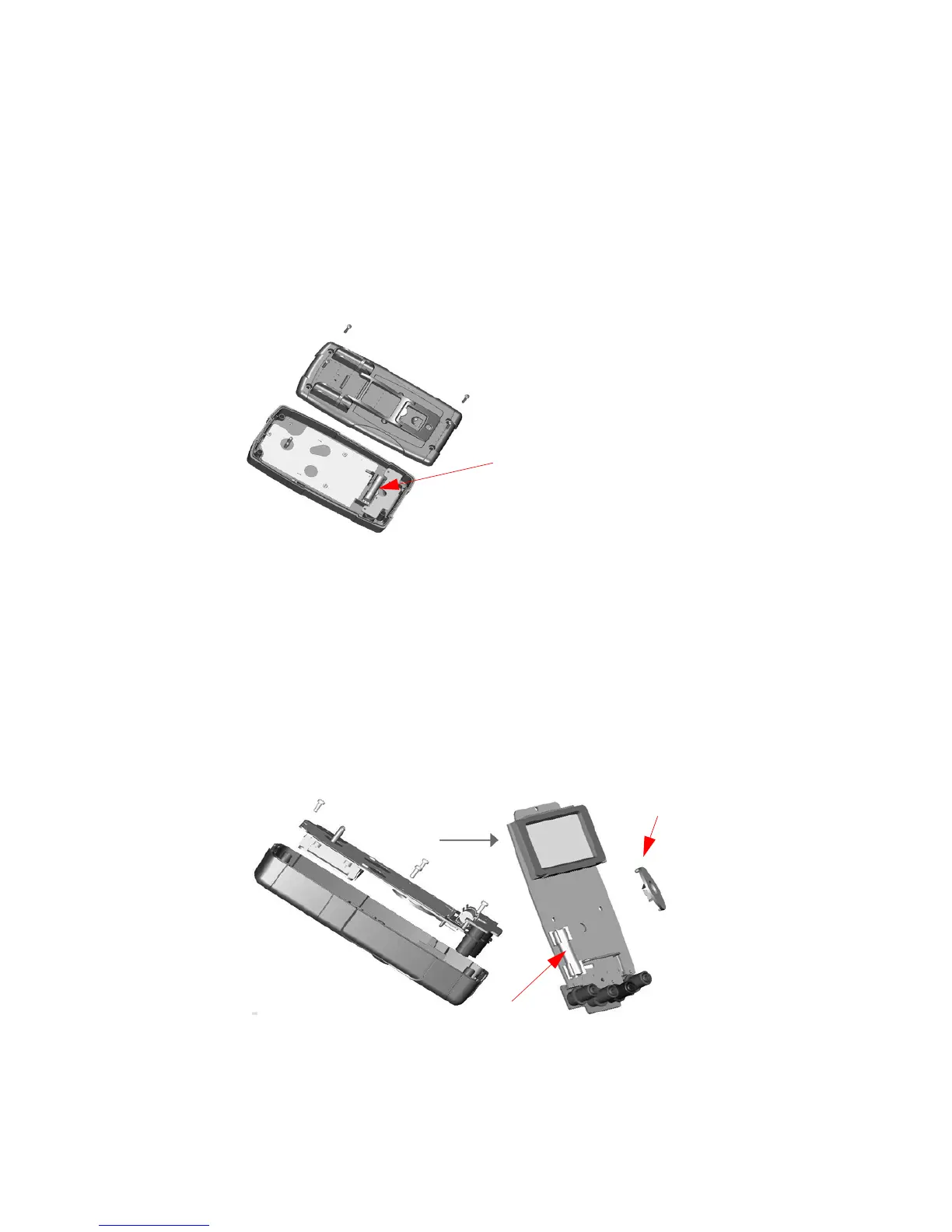

Figure 4-10 Fuse 1 replacement
5 If you want to replace a defective Fuse 2, remove Fuse 1 prior to
removing the Fuse 2. Loosen the four screws (shown in Figure 4- 11) to
lift and remove the circuit board from top case.
6 Gently remove the defective Fuse 2 by prying one end of the fuse loose
and removing it out of the fuse bracket, see Figure 4- 11.
7 Replace a new fuse of the same size and rating into the center of the
fuse holder.
Figure 4-11 Fuse 2 replacement
Fuse 2 (11 A/1000 V)
Rotary Switch
