Disassembly and Repair 5

U3402A User’s and Service Guide 83

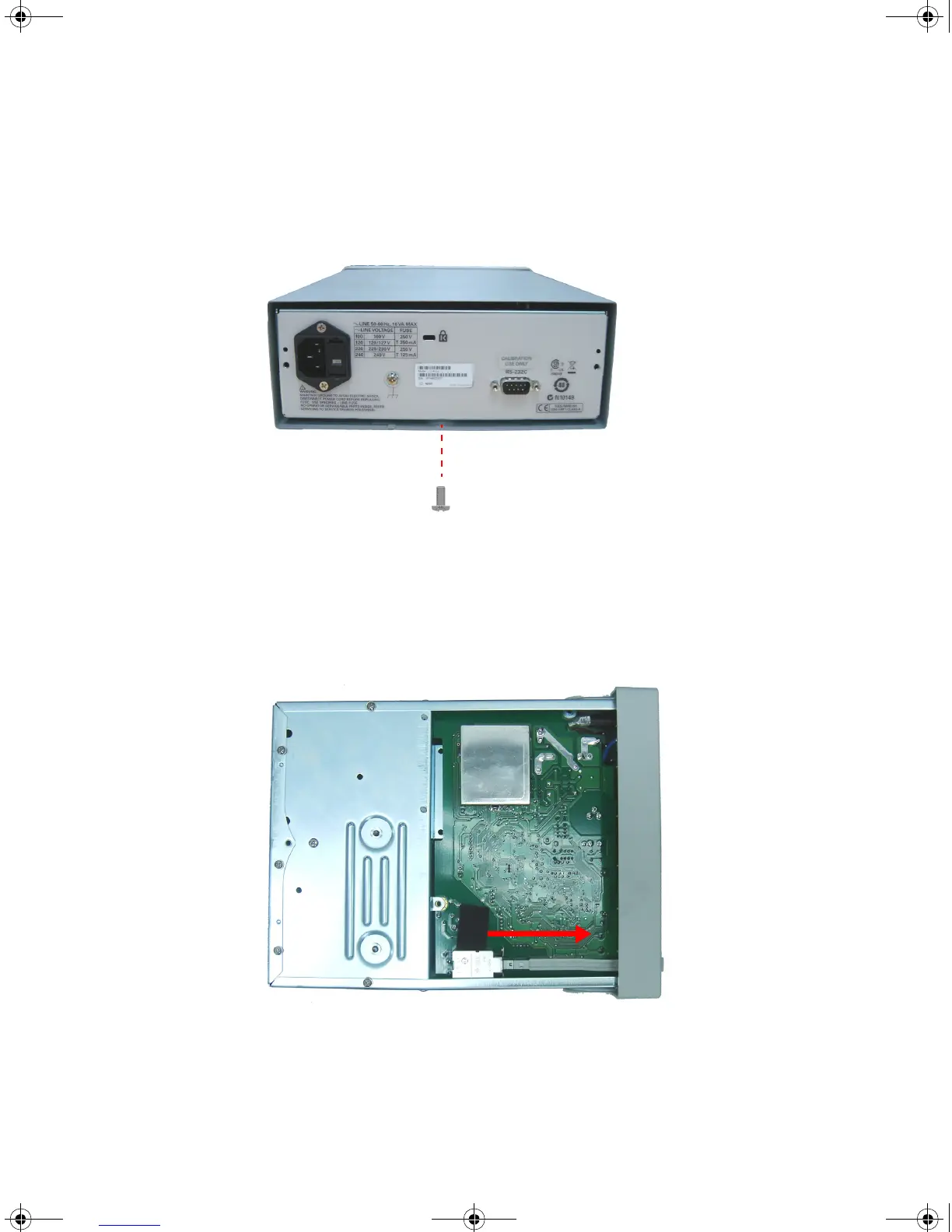

5 Remove the cover. Remove the screw at the bottom of the cover and slide

the cover off the multimeter.

Front Panel Removal

1 Remove on/off switch push rod. Gently move the power switch push rod

toward the front of the multimeter to disengage it from the switch. Be

careful not to twist or bend the push rod.
