Agilent Technologies U8001A - Measurement Techniques

46 U8001A/U8002A User’s and Service Guide
5Service Guide
Measurement Techniques
Test S etup
Most tests are performed at the front terminals as shown below.
Measure the DC voltage directly at the positive (+) and negative
(–) terminals on the front panel.

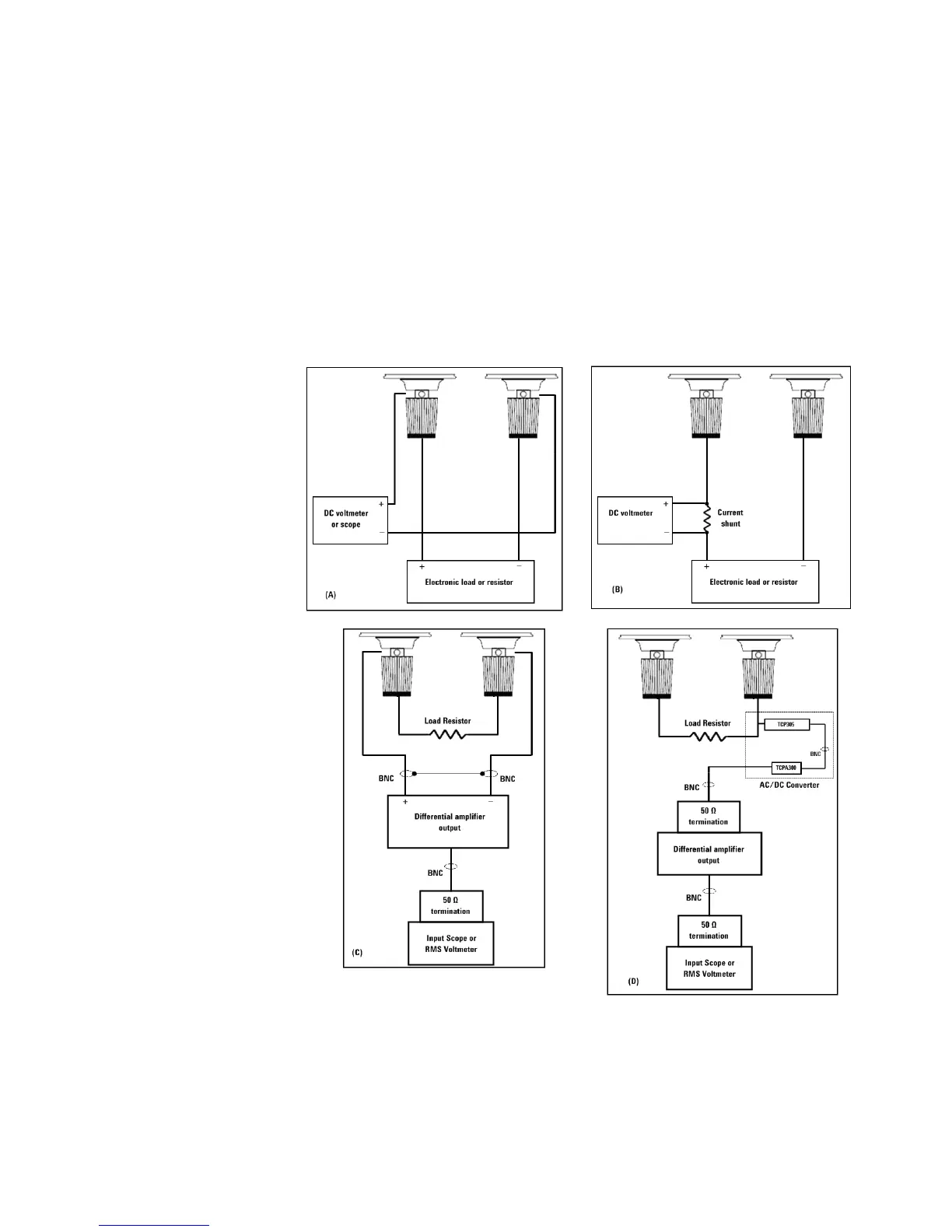

Figure 5-2 Te s t S et up s
