Agilent Technologies X3502-64170 User Manual

17 Technical Information
Interconnections
306/342 TwisTorr 74 FS User Manual / 87-901-053-01

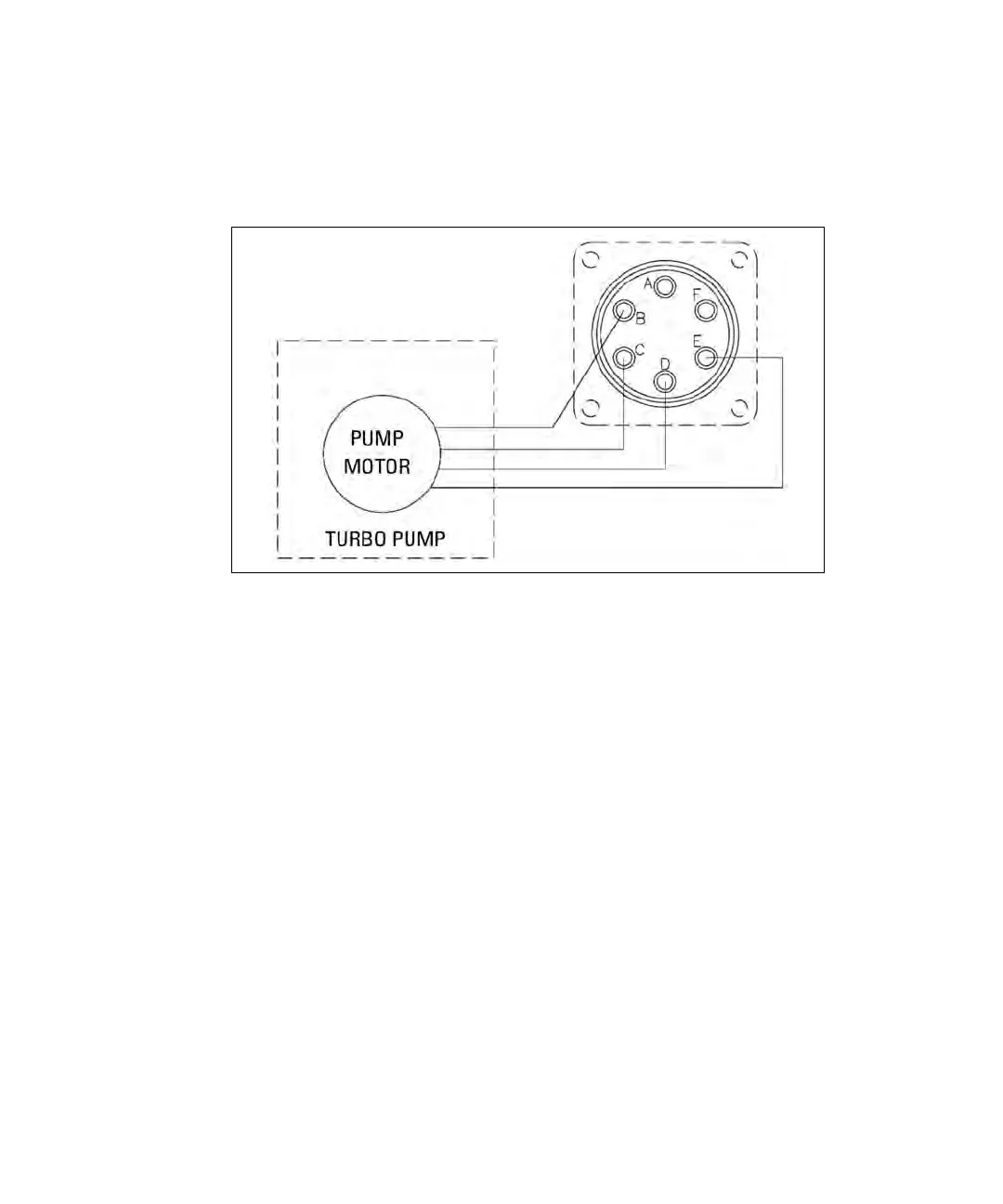

Connection C – Electrical
Figure 27
The turbopump is connected to the controller through a 6-pin
connector. Pins B, C and D are the 3-phase supply to the motor, pin E
is connected to the pump ground, pins A and F reserved for Agilent.
If the temperature sensor is disconnected, the pump will not start. To
prevent damage to the pump when the temperature exceeds 60 °C,
the sensor automatically cuts off the power supply.
