Technical Information
Connection of the High Vacuum Flange
17
TwisTorr 74 FS User Manual / 87-901-053-01 325/342

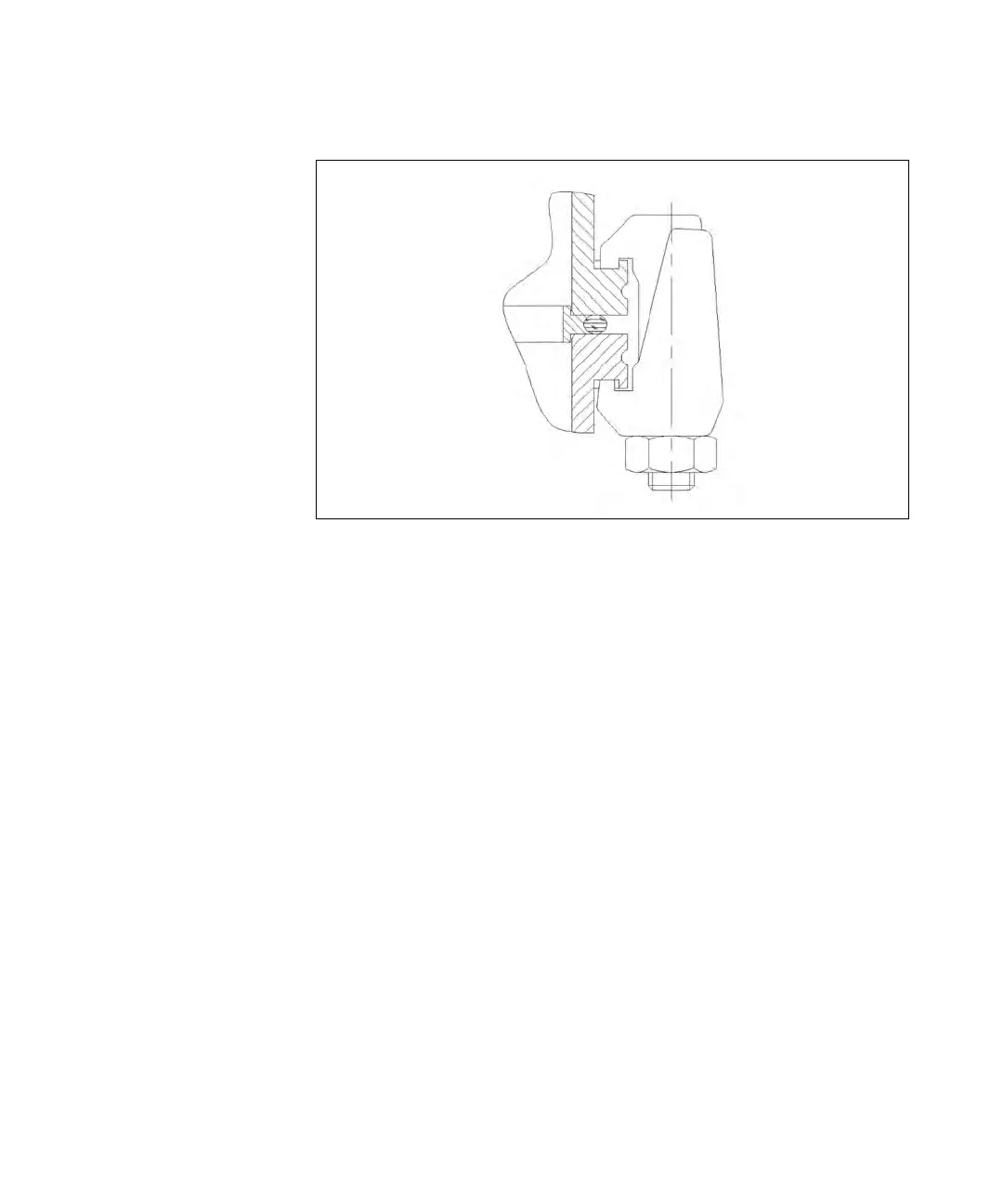

Figure 42
Use the required number of claw clamps:
4 for ISO 63 flange
Tighten the claw clamps with a torque of 22 Nm.
