Agria 6000 - Electric Wiring Diagram

Edition 11.98 Power Hoe 6000 37
Figure C
1 Hex head bolt for steering handle height adjustment
2 Tommy screw for steering handle side adjustment
3 Gearshift lever
4 Engine shut-off switch
5 Dead stop lever
6 Clutch lever
7 Pawl
8 Speed control lever
Designation of Parts,

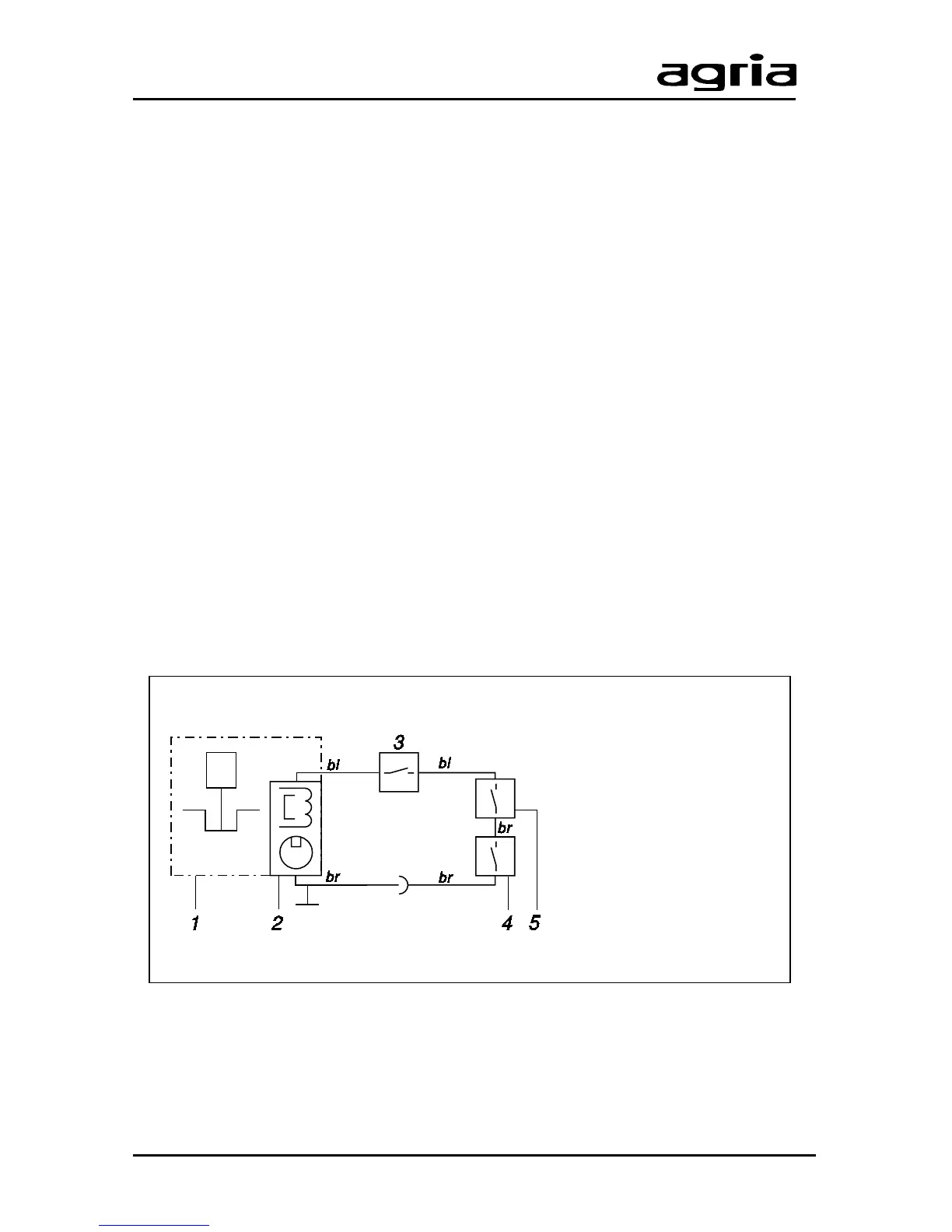

Electrical Wiring Diagram
1 Engine
2 Magnet ignition system
3 Engine speed delimiter
4 Switch in dead stop lever
5 Switch in clutch lever
bl = blue
br = brown
Electrical Wiring Diagram
