Agria 6000 - Unpacking and Assembly

Edition 11.98 Power Hoe 6000 7
Unpacking and Assembly

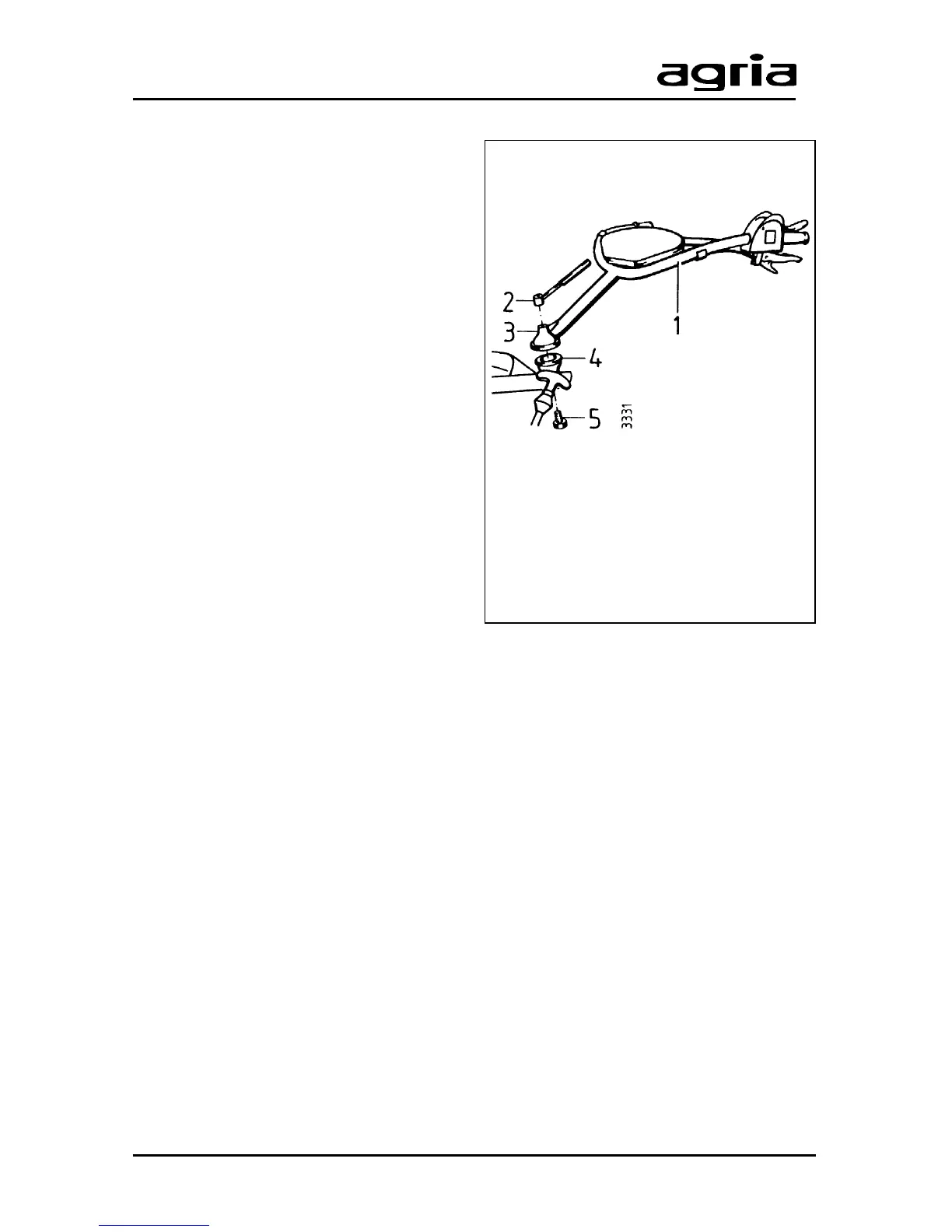

1 Steering handle
2 Tommy nut
3 Locking plate on steering handle
4 Locking plate on joint
5 Hex head bolt
l Open the top of the cardboard box.
l Remove tommy nut (2). Take hex head
bolt (5).
l Place the steering handle (1) onto the
locking plate (4) and hold it in place.
Ensure no Bowden cables or electric
cables are twisted or squeezed as you
are doing this.
l Insert the hex head bolt (5) from the
bottom through the joint and the steering
handle.
l Attach the tommy nut (2).
l Move the steering handle until its teeth
engage with the locking plate teeth.
Tighten the tommy nut.
l Attach the Bowden cables and elec-
tric line to the handlebars using the clips.
l Steering handle removal is in re-
verse order.
l To start up, carry out all steps de-
scribed on page 23.
