MyChron4 660
User Manual
Release 1.03
www.aim-sportline.com
32
Connection with external power

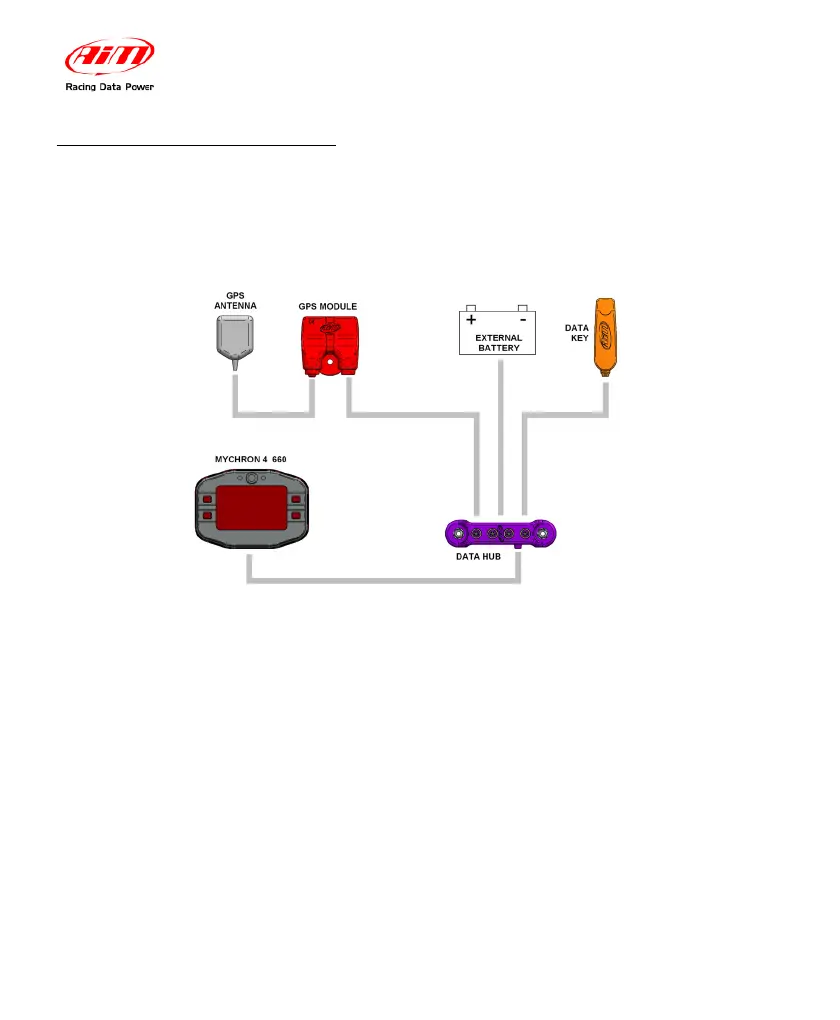

The figure below shows a CAN network where GPS Module and MyChron4 660
are externally powered (assuming a 12 Volts battery is available on Junior
Dragster)
3.2 - How to install GPS module
For a better reception please fix the Antenna GPS over the cockpit .
The Antenna GPS has to be parallel to the ground to have a wider angle of the
view to the sky and to receive a maximum number of satellites correctly
connected to the system.
