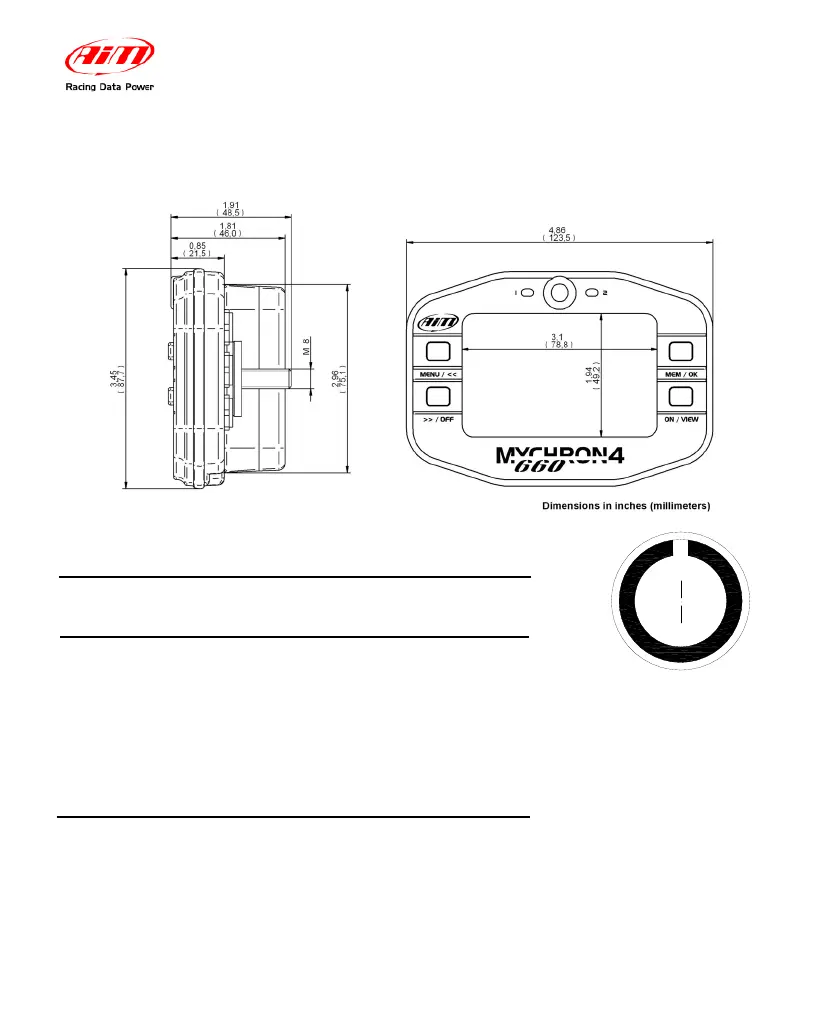

Appendix A: Technical characteristics
Connector details (Temperature channel)
Pin Function Pin Function
1 TC1 5 TR1
2 GND 6 GND
3 TC2 7 TR2
4 GND
Note: TC = Thermocouple TR = Thermo resistor
Female 7-pins connector
pin out (external view)
1
4
3
2
5
6
7
