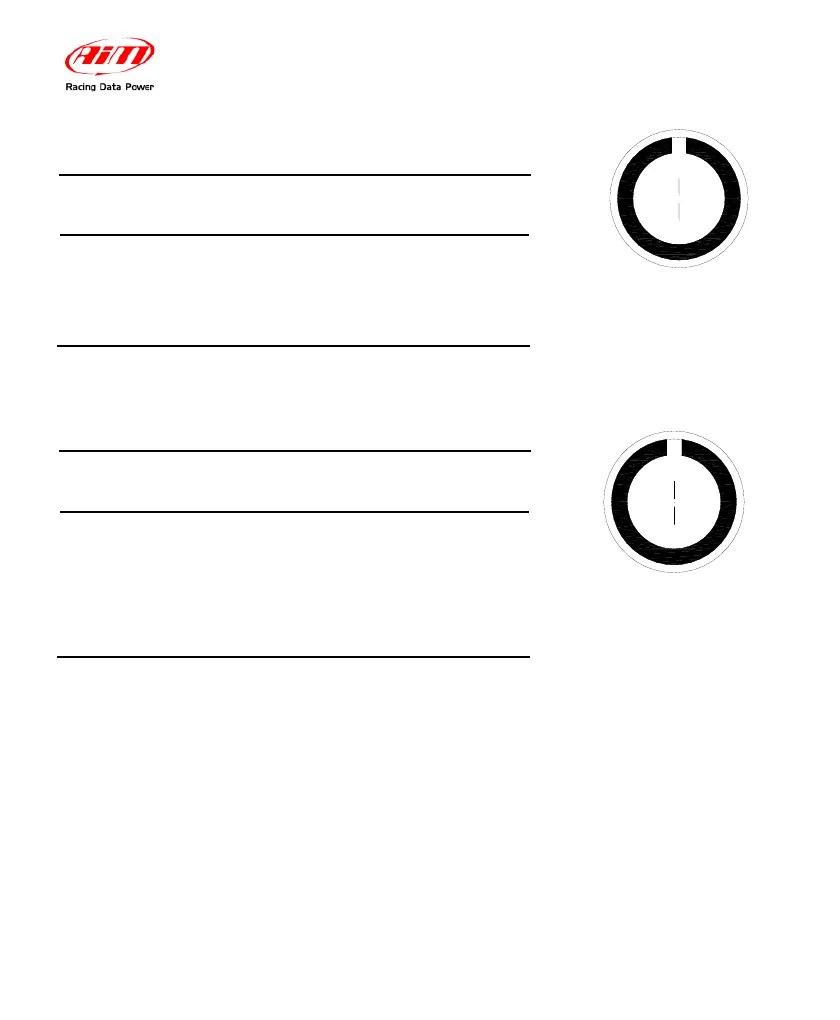

Connector details (Speed channel)
Pin Function Pin Function
1 Speed 3 +VB
2 GND 4 n.c.
Female 4-pins connector
pin out (external view)
Connector details (Exp/PC)
Pin Function Pin Function
1 CAN + 4 CAN -
2 GND 5 +VBext
3 +VB
Female 5-pins connector
pin out (external view)
