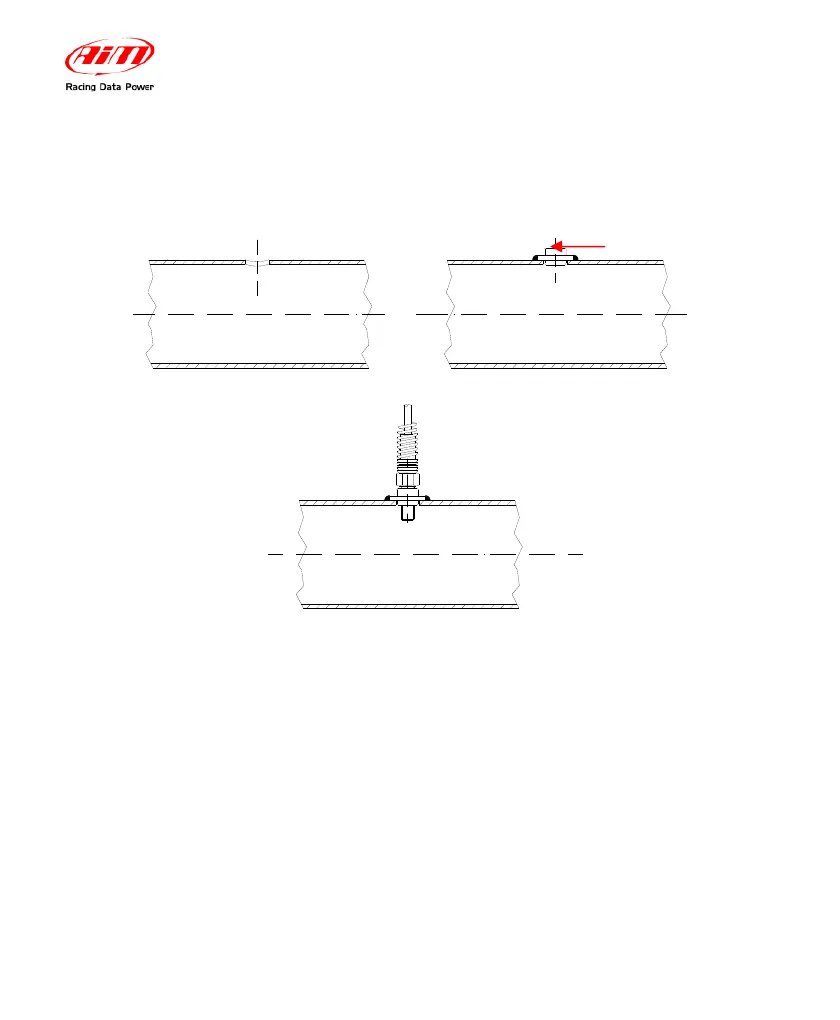

The EGT thermocouple may also be installed using a steel adapter which has to
be welded to the exhaust header pipe, as described in the following drawing and
explained below.
Make a 0.4” (10 mm) hole inside the exhaust header
1. Weld the EGT adapter inside the hole
2. Screw the EGT thermocouple inside the EGT adapter
3. Plug the thermocouple’s male Mignon connector to the EGT input wire of
the “2 temperatures split cable”.
1
3
2
