5. Jet Pressure Valve Knob – Adjusts the

compressed air pressure supplied to the Laskin

Nozzles.

6. Cord Wrap Storage Bracket – May be used to

stow the unused power cord during transportation

or storage.

Rear Panel Features

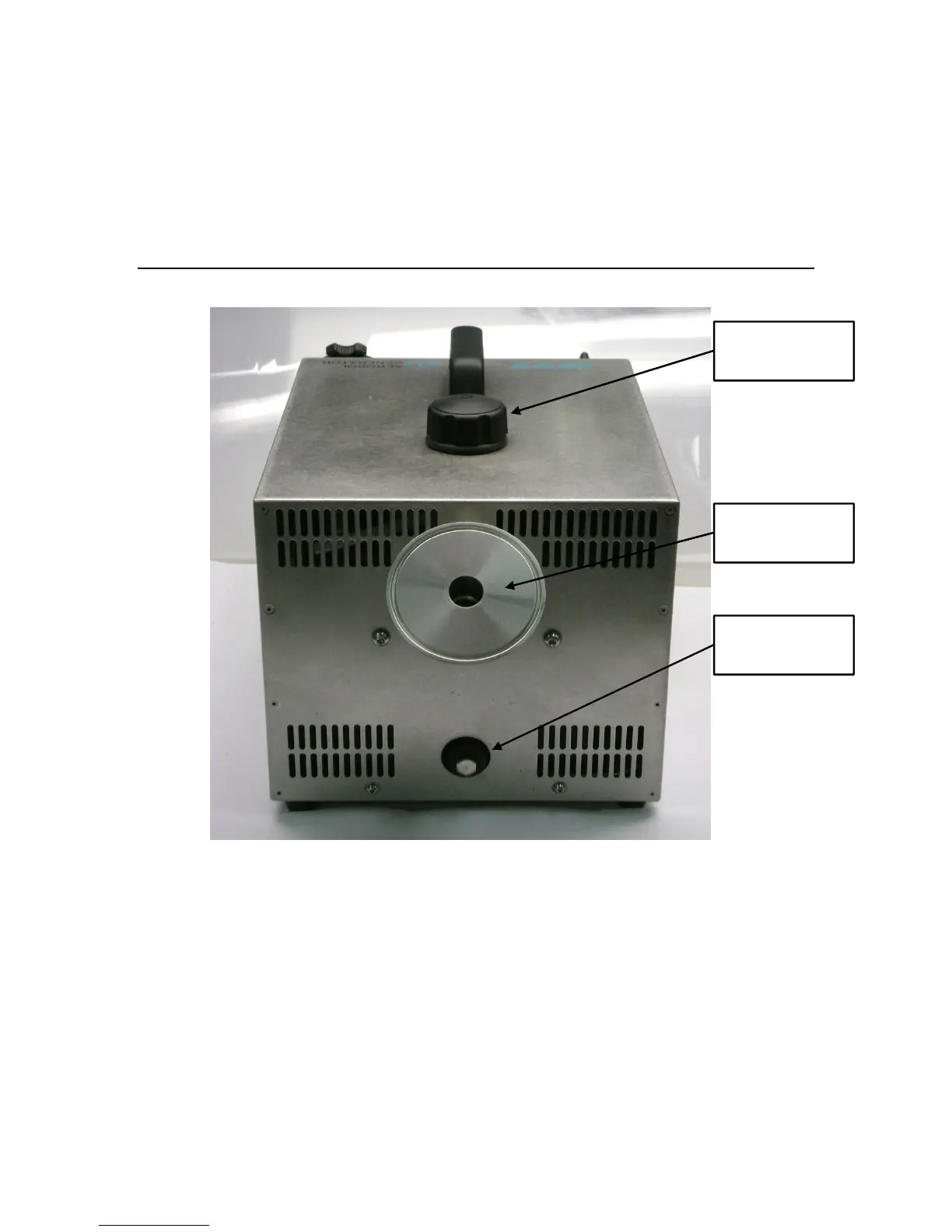

Figure 2 Rear Panel Features

7. Generator Tank Fill Port – Used for filling the unit

with liquid aerosol reagent.

8. Aerosol Output Port – This 3/4NPT port comes

with a 3in Sanitary Flange adapter. If desired, an

alternate connector or adapter may be attached,

such as ATI's hose adapter kit (pn 9300100)

9. Generator Tank Drain Port – Used for draining the

liquid aerosol reagent from the tank. The drain port

uses a sealing straight thread 5/16-18 screw with a

1/2” hex head.

7. Generator

Tank Fill Port

8. Aerosol

Output Port

9. Generator

Tank Drain Port
