23 1800223 E

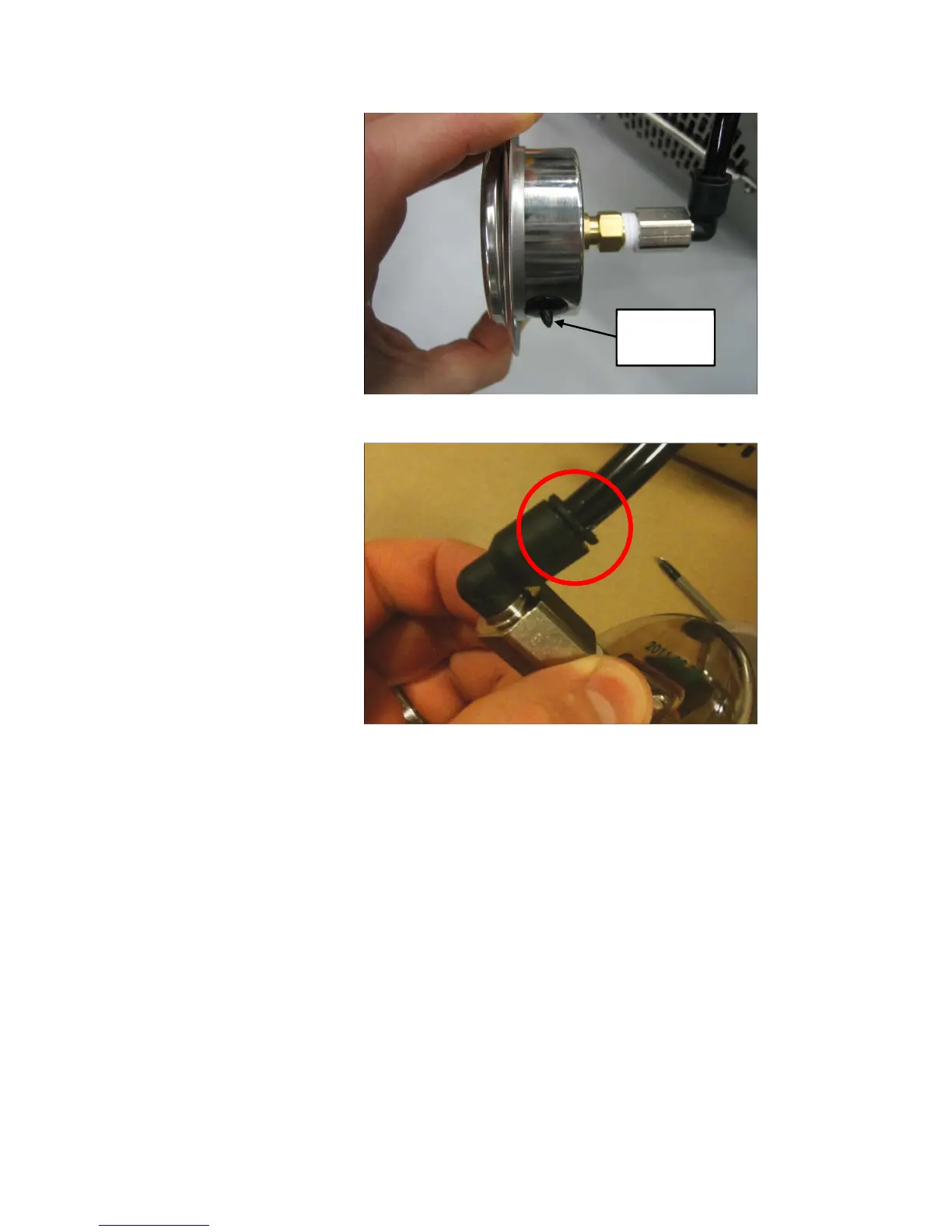

Figure 5 Pressure Gauge Shown Removed
Figure 6 Pressure Gauge Tubing Removal
4. Remove the plastic tubing from the push-to-
connect fitting on the rear of the pressure
gauge by pressing down on the release collar
(circled in image below) while simultaneously
pulling the tubing out of the fitting
5. To install pressure gauge, push tubing firmly
into the elbow fitting, performing a gentle tug
test to confirm that the tubing is properly
retained.
6. Insert the gauge into the front panel and
reinstall with a Phillips head screwdriver
Rubber
Vent Seal
