Physical Description
17

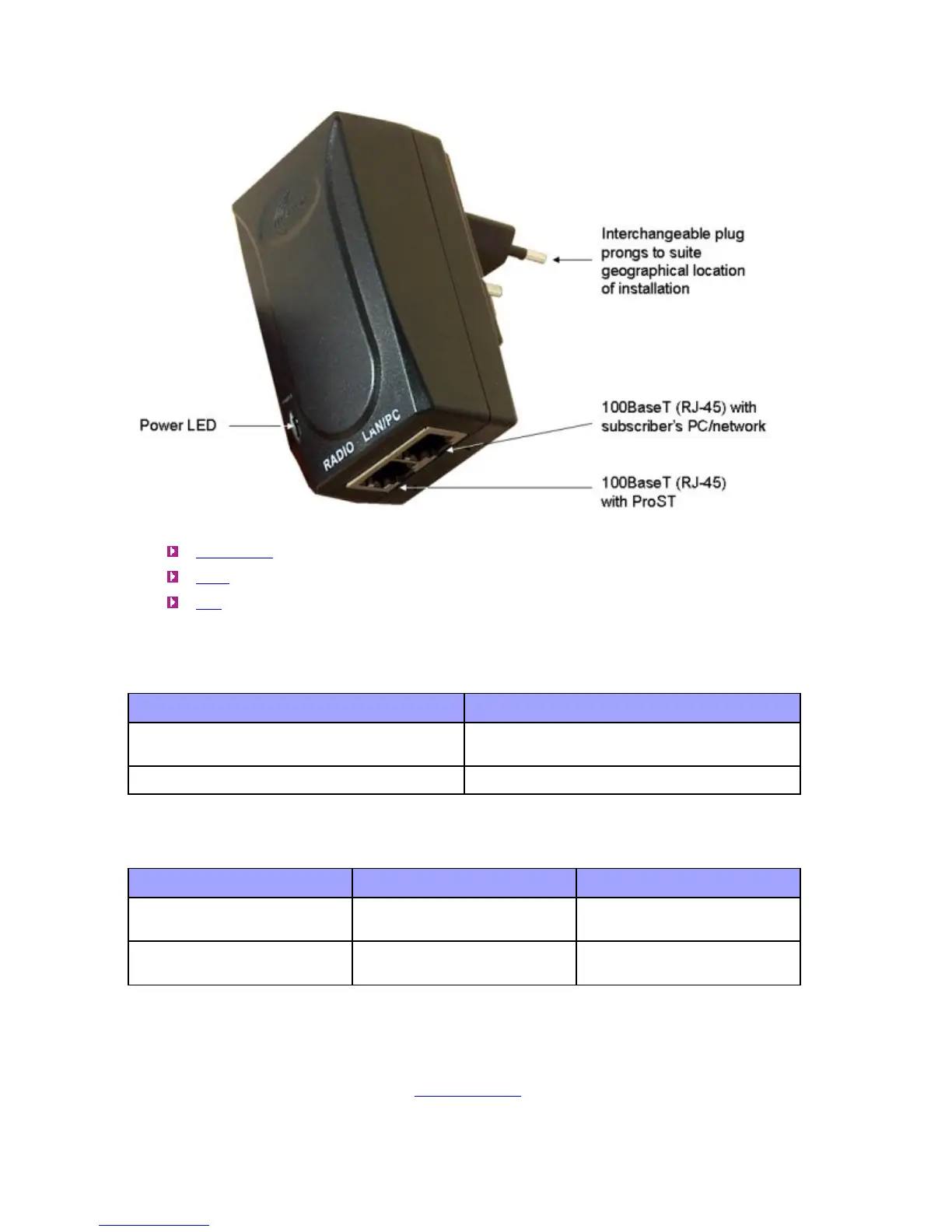

This section provides the following SDA-1 physical descriptions:
Dimensions
Ports
LED
Physical Dimensions
The SDA-1 physical dimensions are described in the table below:
Parameter Value
Dimensions (L x W x H) 72 x 42.5 x 26 mm (2.83 x 1.67 x 1.02
inches)
Weight 0.159 kg
Ports
The SDA-1 provides two ports, as described in the table below:
Port Label Interface
8-pin RJ-45 RADIO 10/100BaseT with ProST
radio
8-pin RJ-45 LAN/PC 10/100BaseT with
subscriber's network
LED
The SDA-1 provides a green power LED (labeled POWER), located on its front panel. This LED
light not only indicates the presence of power, but also can indicate incorrect SDA-1 port
assignment for the network cables, i.e. from the ProST and computer. For a detailed
description of the POWER LED, see Troubleshooting
.
