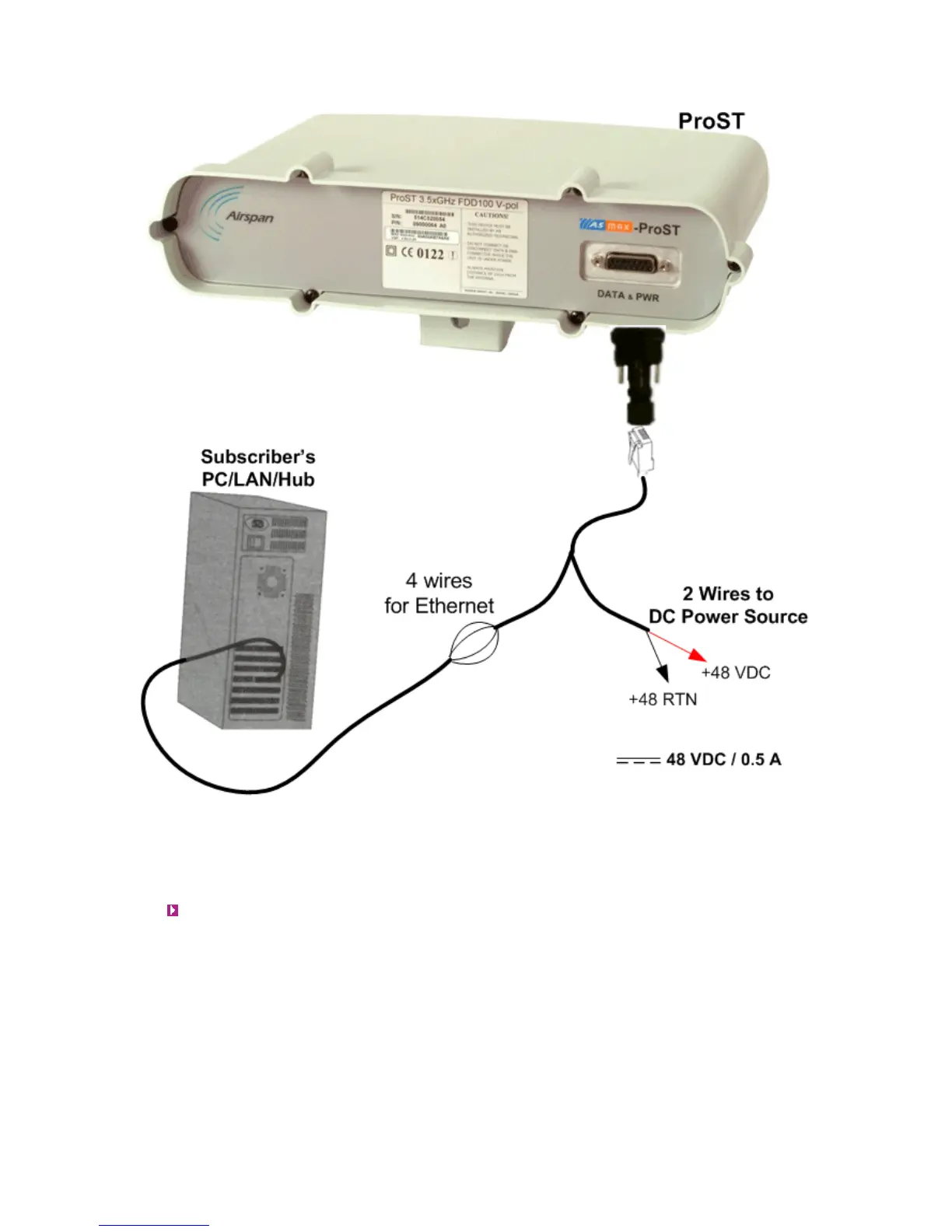

Airspan ProST - Connecting the SDA-1 Type II to LAN

605-0000-706 ProST Installation User Guide-Rev I
44
Connecting the SDA-4SDC Type II (Optional DC adapter)
The SDA-4S/DC adapter is connected to the DC power supply using a cable appropriate to the
specific field conditions.
The setup between the SDA-4SDC and power connection includes the following:
Connector: Anderson Connector Housings for connecting the cable to the SDA-4SDC DC
power socket.
o 1327 - Red Housing x 1
o 1327G6 - Black Housing x 1
