6. Adjust the horizontal positioning of the ProST, and then tighten the two M10-hex head
screws with the M10 hex nuts.
Note: A third-party thread-locking compound must be applied to the M10-hex head screws
to prevent the bolts from working loose.

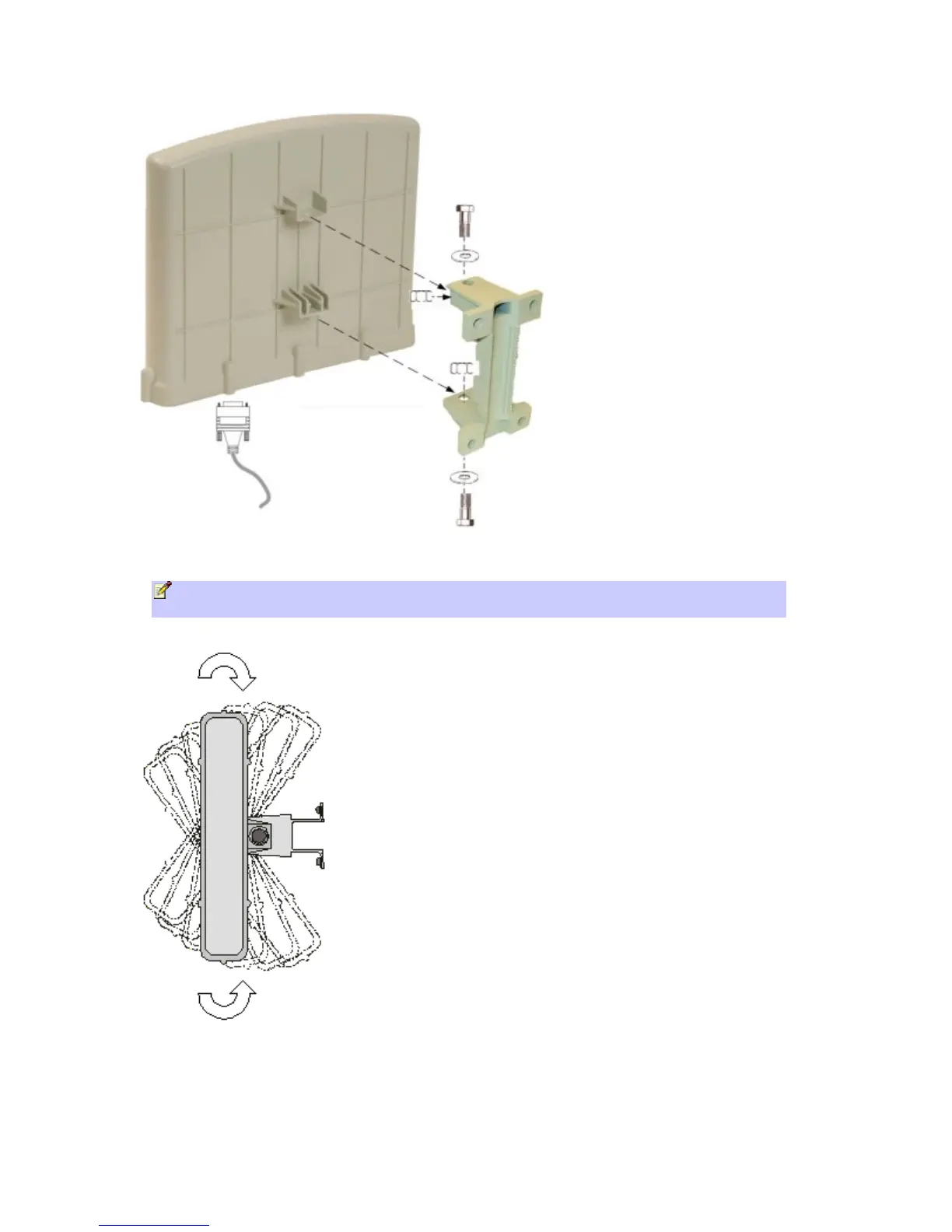

Rotation is restricted in the horizontal plane only, as shown in the figure below:
Pole Mounting
Pole mounting allows the ProST to be easily adjusted in the horizontal (azimuth) and vertical
(elevation) planes for antenna alignment. The ProST is mounted using the mounting holes located
